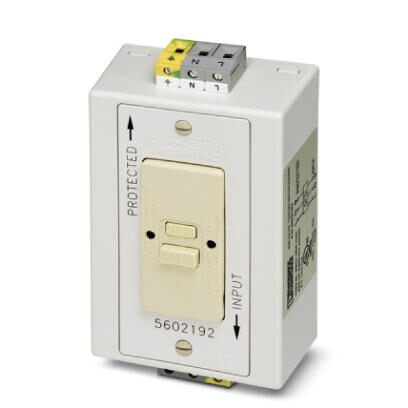

Phoenix Contact EMDUO12020GFIAUXNO Rail-mounted Power Connector
The PHOENIX CONTACT EM-DUO120/20/GFI/AUX/NO is a robust rail-mounted power connector ideal for industrial applications requiring a safe and reliable power distribution solution. It is designed to be mounted on a 35mm DIN rail, conforming to EN 60715 standards. The integrated ground fault circuit interruption (GFCI) provides crucial protection against shock hazards caused by ground shorts, enhancing overall system safety. The auxiliary terminals offer flexibility for additional connections and functionalities. This connector is specifically designed for use in various regions including the USA, Canada, Mexico, Bahamas, Bermuda, Columbia, Costa Rica, Ecuador, El Salvador, Panama, Puerto Rico, Taiwan, Venezuela, and the Virgin Islands, ensuring compatibility with local electrical standards.
Phoenix Contact EMDUO12020GFIAUXNO Rail-mounted Power Connector Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 321.4 g
- Custom tariff number: 85366990
- Country of origin: United States
- Width: 82 mm
- Height: 135 mm
- Depth: 49 mm
- Ambient temperature (operation): -35 °C ... 60 °C
- Nominal voltage UN: 125 V AC
- Nominal current IN: 20 A
- For country-specific use in: USA, Canada, Mexico, Bahamas, Bermuda, Columbia, Costa Rica, Ecuador, El Salvador, Panama, Puerto Rico, Taiwan, Venezuela, Virgin Islands
- Color: ivory
- Insulating material: Polycarbonate & ABS blend
- UL 508: Compliant
- CSA 22.2: Compliant
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG max.: 10
- Connection method: Screw connection
- Stripping length: 8 mm
- Screw thread: M3
- eCl@ss 4.0: 27142305
- eCl@ss 4.1: 27142305
- eCl@ss 5.0: 27143412
- eCl@ss 5.1: 27143412
- eCl@ss 6.0: 27143412
- eCl@ss 7.0: 27440519
- eCl@ss 8.0: 27142305
- ETIM 2.0: EC001325
- ETIM 3.0: EC001325
- ETIM 4.0: EC001663
- ETIM 5.0: EC001663
- UNSPSC 6.01: 30211806
- UNSPSC 7.0901: 39121406
- UNSPSC 11: 39121406
- UNSPSC 12.01: 39121406
- UNSPSC 13.2: 39121406
- UL Listed: 30-10 AWG, 20A, 125V
- cUL Listed: 30-10 AWG, 20A, 125V
