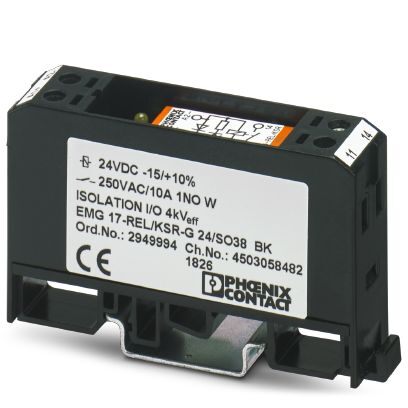

Phoenix Contact EMG17RELKSRG24SO38 Power Relay Module
The PHOENIX CONTACT EMG 17-REL/KSR-G 24/SO38 is a DIN-rail mountable power relay module suitable for a wide range of industrial applications requiring high inrush current handling. It incorporates a relay with AgCdO contacts, providing reliable switching for medium to large loads. The module's modular design and user-friendly plug-in housing simplify maintenance and integration. Its robust construction and compliance with standards like IEC 60664 and EN 50178 ensure dependable performance in demanding environments. The integrated free-wheeling diode protects the circuit from voltage spikes.
Phoenix Contact EMG17RELKSRG24SO38 Power Relay Module Specifications:
- packing_unit: 1 pc
- weight_per_piece: 53.79 g
- custom_tariff_number: 85364190
- country_of_origin: Germany
- width: 17.5 mm
- height: 75 mm
- depth: 62.5 mm
- ambient_temperature_operation: -20 °C ... 50 °C
- ambient_temperature_storage: -20 °C ... 70 °C
- nominal_input_voltage_un: 24 V DC
- input_voltage_range: 0.85 ... 1.1
- typical_input_current_un: 28 mA
- typical_response_time: 13 ms
- typical_release_time: 15 ms
- protective_circuit: Free-wheeling diode
- operating_voltage_display: Yellow LED
- power_dissipation: 0.67 W
- contact_type: 1 N/O contact with lead contact
- contact_material: AgCdO
- maximum_switching_voltage: 250 V AC
- maximum_inrush_current: 80 A (20 ms)
- limiting_continuous_current: 10 A
- interrupting_rating: 2500 VA (for 250 V AC)
- test_voltage_relay_winding_relay_contact: 4 kV AC (50 Hz, 1 min.)
- mechanical_service_life: Approx. 10,7cycles
- standards_regulations_1: IEC 60664
- standards_regulations_2: EN 50178
- standards_regulations_3: IEC 62103
- rated_surge_voltage_insulation: safe isolation
- degree_of_pollution: 2
- overvoltage_category: III
- mounting_position: any
- connection_name_input: Coil side
- connection_method_input: Screw connection
- stripping_length_input: 8 mm
- screw_thread_input: M3
- conductor_cross_section_solid_input: 0.2 mm² ... 4 mm²
- conductor_cross_section_flexible_input: 0.2 mm² ... 2.5 mm²
- conductor_cross_section_awg_input: 24 ... 12
- connection_name_output: Contact side
- connection_method_output: Screw connection
- stripping_length_output: 8 mm
- screw_thread_output: M3
- conductor_cross_section_solid_output: 0.2 mm² ... 4 mm²
- conductor_cross_section_flexible_output: 0.2 mm² ... 2.5 mm²
- conductor_cross_section_awg_output: 24 ... 12
- connection_in_acc_with_standard: CUL
- ecl@ss_4.0: 27371102
- ecl@ss_4.1: 27371102
- ecl@ss_5.0: 27371001
- ecl@ss_5.1: 27371001
- ecl@ss_6.0: 27371001
- ecl@ss_7.0: 27371001
- ecl@ss_8.0: 27371601
- etim_2.0: EC000196
- etim_3.0: EC000196
- etim_4.0: EC000196
- etim_5.0: EC001437
- unspsc_6.01: 30211916
- unspsc_7.0901: 39121515
- unspsc_11: 39121515
- unspsc_12.01: 39121515
- unspsc_13.2: 39121515
