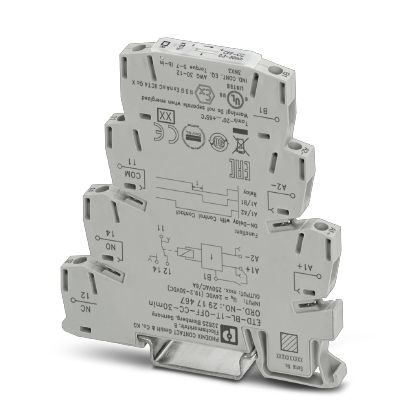

Phoenix Contact ETDBL1TOFFCC30MIN Off-Delay Timer Relay
The PHOENIX CONTACT ETD-BL-1T-OFF-CC-30MIN is a compact timer relay ideal for controlling time sequences in industrial automation and control systems. Its 6.2 mm narrow design width allows for space-saving integration into control panels. The adjustable time range of 0.3 to 30 minutes, combined with the control contact, provides flexibility in various applications. The labeled and illuminated thumbwheel simplifies time setting and ensures accuracy, while the recessed design protects against accidental modification. This timer relay is suitable for applications requiring precise time control, such as delayed start of motors, control of lighting systems, and sequencing of automated processes.
Phoenix Contact ETDBL1TOFFCC30MIN Off-Delay Timer Relay Specifications:
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Permissible humidity (operation): 15 % ... 85 %
- Noise immunity: EN 61000-6-2
- Input voltage range: 24 V DC (19,2 V DC ...30 V DC)
- Function: OFF-CC: Off delay with control contact
- Time setting range: 0.3 min. ... 30 min.
- Contact type: 1 floating PDT
- Output fuse: 6.3 A (fast-blow)
- Mechanical service life: Approx. 2 x 10^7 cycles
- Mounting position: any
- Color: green
- Housing insulation material: Polyamide PA, self-extinguishing
- Rated insulation voltage: 300 V AC
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA nC IIC T4 Gc X
- UL USA Canada: UL/C-UL listed UL 508
- GL: GL EMC 1 C
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 30
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm
- Connection method: Screw connection
- Control pulse length: min. 50 ms
- Electromagnetic compatibility: EN 61000-6-4
- Flammability rating according to UL 94: V0
- Low Voltage Directive: Conformance with LV directive 2006/95/EC
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 80.0 g
- Custom tariff number: 85364900
- Country of origin: Germany
- eCl@ss 4.0: 27371103
- eCl@ss 4.1: 27371103
- eCl@ss 5.0: 27371701
- eCl@ss 5.1: 27371701
- eCl@ss 6.0: 27371790
- eCl@ss 7.0: 27371790
- eCl@ss 8.0: 27371605
- eCl@ss 9.0: 27371605
- ETIM 2.0: EC001439
- ETIM 3.0: EC001439
- ETIM 4.0: EC001439
- ETIM 5.0: EC001439
- UNSPSC 6.01: 30211920
- UNSPSC 7.0901: 39121519
- UNSPSC 11: 39121519
- UNSPSC 12.01: 39121519
- UNSPSC 13.2: 39121519
Buy the ETD-BL-1T-OFF-CC- 30MIN PHOENIX CONTACT Off-Delay Timer Relay | myMectronic
Purchase the PHOENIX CONTACT ETD-BL-1T-OFF-CC-30MIN timer relay securely online and ensure reliable time control for your industrial applications.
