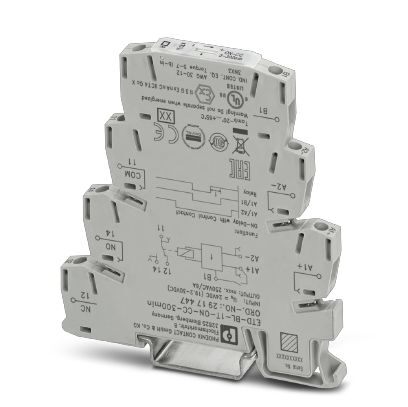

Phoenix Contact ETDBL1TONCC300MIN Timer Relay with Control Contact
The PHOENIX CONTACT ETD-BL-1T-ON-CC-300MIN is a compact timer relay ideal for controlling time-dependent processes in industrial automation and control systems. Its narrow 6.2 mm design width allows for space-saving integration into control panels. The front-mounted, labeled thumbwheel enables precise and user-friendly time setting, protected from accidental modification by a recessed design. The relay's control contact provides flexibility in circuit design, and its robust construction ensures reliable operation in demanding environments. It is suitable for applications such as controlling machinery, lighting systems, and other processes requiring precise timing.
Phoenix Contact ETDBL1TONCC300MIN Timer Relay with Control Contact Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 60.0 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Permissible humidity (operation): 15 % ... 85 %
- Noise immunity: EN 61000-6-2
- Input voltage range: 24 V DC (19,2 V DC ...30 V DC)
- Function: ON-CC: With switch-on delay with control contact
- Time setting range: 3 min. ... 300 min.
- Contact type: 1 floating PDT
- Output fuse: 6.3 A (fast-blow)
- Status display: Green LED (POWER), Yellow LED (relay active)
- Mechanical service life: Approx. 2 x 10^7 cycles
- Mounting position: any
- Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715
- Color: green
- Housing insulation material: Polyamide PA, self-extinguishing
- Rated insulation voltage: 300 V AC (According to EN 50178)
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA nC IIC T4 Gc X
- UL, USA / Canada: UL/C-UL listed UL 508
- GL: GL EMC 1 C
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 30
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm
- Connection method: Screw connection
- Control pulse length: min. 50 ms
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
- Noise emission: EN 61000-6-4
- Flammability rating according to UL 94: V0
- Low Voltage Directive: Conformance with LV directive 2006/95/EC
- eCl@ss 4.0: 27371103
- eCl@ss 4.1: 27371103
- eCl@ss 5.0: 27371701
- eCl@ss 5.1: 27371701
- eCl@ss 6.0: 27371790
- eCl@ss 7.0: 27371790
- eCl@ss 8.0: 27371605
- eCl@ss 9.0: 27371605
- ETIM 2.0: EC001439
- ETIM 3.0: EC001439
- ETIM 4.0: EC001439
- ETIM 5.0: EC001439
- UNSPSC 6.01: 30211920
- UNSPSC 7.0901: 39121519
- UNSPSC 11: 39121519
- UNSPSC 12.01: 39121519
- UNSPSC 13.2: 39121519
