Phoenix Contact LPT165150ZB PCB terminal block

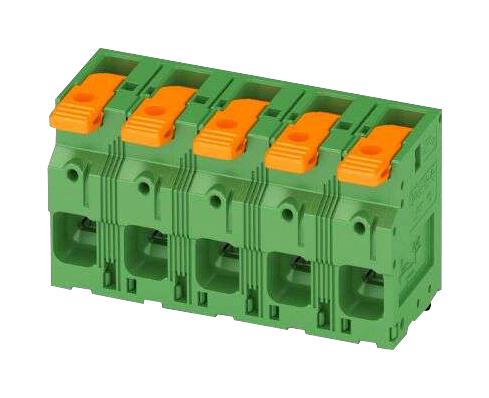

The PCB terminal block LPT 16/ 5-15,0-ZB is designed for secure, reliable electrical connections in industrial and electronic applications. It features a lever push-in connection for quick assembly and disconnection, supporting a nominal current of 76 A and rated voltage of 1000 V. With a pitch of 15 mm and five positions in a single row, this terminal is ideal for wave soldering and is made from tin-plated copper alloy for durability. Its green housing made of PA ensures compliance with environmental standards and safe operation at temperatures from -40°C to 105°C. The terminal block offers excellent electrical performance, with rated surge voltages of up to 8 kV, and provides easy stripping lengths of 18-20 mm for flexible conductor connections, making it suitable for demanding industrial automation and control systems.
Phoenix Contact LPT165150ZB PCB terminal block Specifications:
- Electrical rating: 76A, 1000V, rated surge voltage 8kV
- Connection capacity: solid conductor 0.75-16mm², flexible 0.75-25mm²
- Conductor cross section: 18-16 AWG, flexible with/without ferrule
- Housing: green PA, flammability UL 94 V0, CTI 600
- Material: Tin-plated Cu alloy contacts, tin top layer
- Dimensions: length 32mm, pitch 15mm, height approx. 18-20mm
- Stripping length: 18-20mm, hole diameter: 1.7mm
- Operating temperature: -40°C to 105°C, environmental compliance
- Mounting: Wave soldering, packed in cardboard, 25 pieces per box
- Standards: IEC 60947-7-4, RoHS compliant, UL V0
Buy the Phoenix Contact Series LPT PCB Terminal Block: LPT165150ZB
Order the Phoenix Contact PCB terminal block LPT 16/ 5-15,0-ZB now for secure, fast, and reliable electrical connections in industrial systems. Featuring a lever push-in mechanism, it supports up to 76A current, with a rated voltage of 1000V. Designed for wave soldering, it offers easy conductor terminations with flexible cross-section capacity from 0.75 to 25mm². Its durable, UL 94 V0 flame-retardant green housing ensures safety and compliance. Purchase online today to streamline your automation projects with this versatile terminal block offering optimal electrical performance and easy installation features.
Get Phoenix Contact LPT165150ZB today—built for reliable electrical connections and industrial automation efficiency.
Frequently Asked Questions
Where can I buy Phoenix Contact LPT165150ZB?
You can click on the BUY or RFQ button to purchase LPT165150ZB from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPT165150ZB?
You can download the LPT165150ZB datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPT165150ZB?
Phoenix Contact
