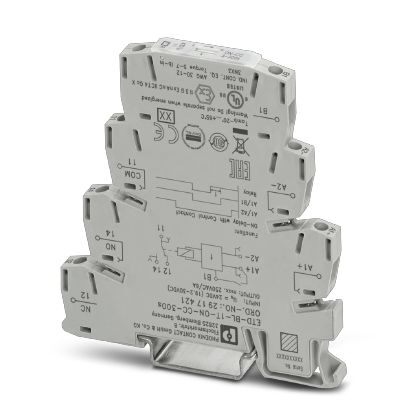

Phoenix Contact ETDBL1TONCC300S Timer Relay with Control Contact
The PHOENIX CONTACT ETD-BL-1T-ON-CC-300S is a compact timer relay ideal for controlling time-dependent processes in industrial automation and control systems. Its narrow 6.2 mm design width makes it suitable for space-constrained applications. The adjustable time range (3-300 seconds) and switch-on delay with control contact provide flexibility in timing sequences. The labeled thumbwheel simplifies time setting, while the recessed design protects against accidental modification. This relay is commonly used in applications such as conveyor systems, lighting control, and machine sequencing.
Phoenix Contact ETDBL1TONCC300S Timer Relay with Control Contact Specifications:
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Permissible humidity (operation): 15 % ... 85 %
- Noise immunity: EN 61000-6-2
- Input voltage range: 24 V DC (19,2 V DC ...30 V DC)
- Function: ON-CC: With switch-on delay with control contact
- Time setting range: 3 s ... 300 s
- Contact type: 1 floating PDT
- Output fuse: 6.3 A (fast-blow)
- Mechanical service life: Approx. 2 x 10^7 cycles
- Mounting position: any
- Color: green
- Housing insulation material: Polyamide PA, self-extinguishing
- Rated insulation voltage: 300 V AC
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA nC IIC T4 Gc X
- UL USA Canada: UL/C-UL listed UL 508
- GL: GL EMC 1 C
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 30
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm
- Connection method: Screw connection
- Control pulse length: min. 50 ms
- Electromagnetic compatibility: EN 61000-6-4
- Flammability rating according to UL 94: V0
- Low Voltage Directive: Conformance with LV directive 2006/95/EC
- eCl@ss 4.0: 27371103
- eCl@ss 4.1: 27371103
- eCl@ss 5.0: 27371701
- eCl@ss 5.1: 27371701
- eCl@ss 6.0: 27371790
- eCl@ss 7.0: 27371790
- eCl@ss 8.0: 27371605
- eCl@ss 9.0: 27371605
- ETIM 2.0: EC001439
- ETIM 3.0: EC001439
- ETIM 4.0: EC001439
- ETIM 5.0: EC001439
- UNSPSC 6.01: 30211920
- UNSPSC 7.0901: 39121519
- UNSPSC 11: 39121519
- UNSPSC 12.01: 39121519
- UNSPSC 13.2: 39121519
