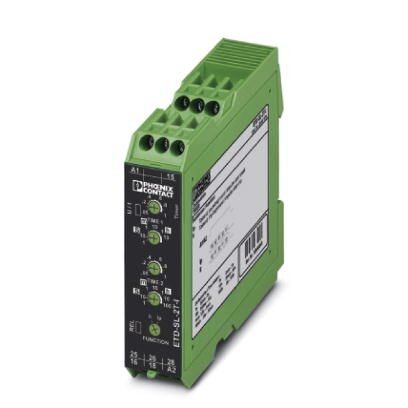

Phoenix Contact ETDSL2TI Adjustable Pulse Timer Relay
The PHOENIX CONTACT ETD-SL-2T-I timer relay is a versatile solution for controlling time sequences in demanding industrial environments. It's designed to meet increasingly stringent safety and system availability requirements across sectors like mechanical engineering, chemical processing, and automation. The relay offers adjustable pulse and pause times, a wide-range power supply (24-240V DC/AC), and two floating PDT contacts, enabling precise timing control and reliable operation. It's suitable for applications requiring precise timing control, such as automated production lines, process control systems, and power engineering applications. The ETD-SL-2T-I contributes to enhanced safety and system efficiency by providing accurate and flexible timing capabilities.
Phoenix Contact ETDSL2TI Adjustable Pulse Timer Relay Specifications:
- Input Voltage Range: 24 V DC ... 240 V DC -20 % ... +25 %; 24 V AC ... 240 V AC -15 % ... +10 %
- Time Setting Range: 50 ms ... 100 hours (7 time end ranges)
- Function: lp: Switched-mode beginning with the pause; li: Switched-mode beginning with the pulse
- Basic Accuracy: ± 1 % (of scale end value)
- Setting Accuracy: ≤5 % (of scale end value)
- Repeat Accuracy: ≤0.5 % ±5 ms
- Nominal Power Consumption: 2.5 VA (1 W)
- Contact Type: 2 floating PDT contacts
- Nominal Insulation Voltage: 250 V AC (in acc. with IEC 60664-1)
- Interrupting Rating: 750 VA (3 A/250 V AC, module aligned,≤5 mm spacing); 1250 VA (5 A/250 V AC, module not aligned,≥5 mm spacing)
- Service Life Mechanical: Approx. 2 x 10^7 cycles
- Service Life Electrical: Approx. 2 x 10^5 cycles at ohmic load, 1000 VA
- Switching Frequency: Max. 60 (per minute at 100 VA ohmic load); Max. 6 (per minute at 1000 VA ohmic load)
- Operating Mode: 100% operating factor
- Degree of Protection: IP40 (housing) / IP20 (connection terminal blocks)
- Pollution Degree: 3
- Surge Voltage Category: III
- Rated Surge Voltage: 4 kV (basic insulation)
- Inflammability Class: V0
- Conductor Cross Section Solid: 0.5 mm[2] ... 2.5 mm[2]
- Conductor Cross Section Stranded: 0.5 mm[2] ... 2.5 mm[2]
- Stripping Length: 8 mm
- Ambient Temperature Operation: -25 °C ... 55 °C
- Ambient Temperature Storage: -25 °C ... 70 °C
- Permissible Humidity: 15 % ... 85 %
