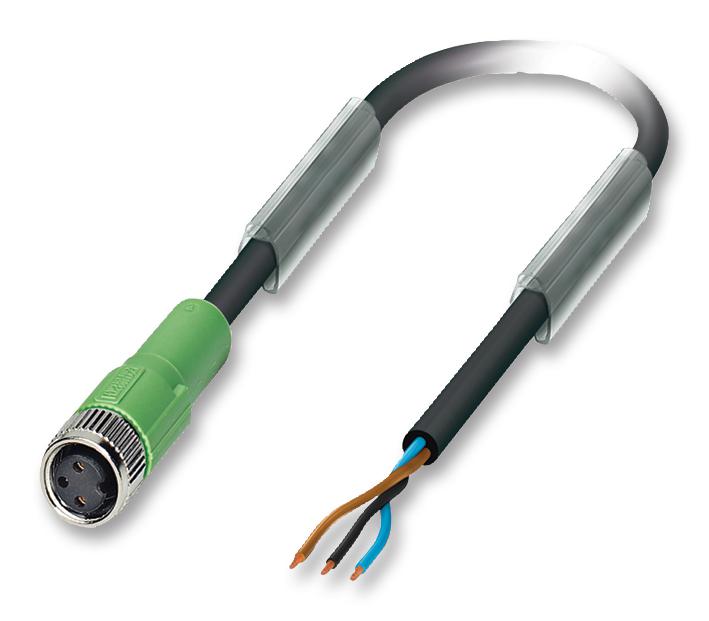

Phoenix Contact SAC3P100PURM8FS Sensor/Actuator Cable
This is a 10-meter long sensor and actuator cable featuring a 3-position M8 connector. Made from halogen-free PUR material, it is flexible, flame-resistant, and resistant to oil, salt water, and various chemicals. The cable supports ambient temperatures from -40°C to 80°C, offers IP65 to IP68 protection, and is suited for industrial automation, sensor connections, and control applications. Its robust construction ensures reliable signal transmission and durability in demanding environments. The cable's twisted pair conductors and UV resistance make it ideal for long-term outdoor use and demanding industrial settings.
Phoenix Contact SAC3P100PURM8FS Sensor/Actuator Cable Specifications:
- Cable Length: 10 m
- Outer sheath material: PUR halogen-free, black-gray RAL 7021
- Conductor cross section: 3x 0.25 mm² (signal line)
- AWG signal line: 24
- Core diameter including insulation: 1.17 mm ±0.02 mm
- Insulation thickness: > 0.38 mm
- Outer cable diameter: approximately 4.4 mm ±0.15 mm
- Bending radius (fixed): 22 mm
- Bending radius (movable): 44 mm
- Rated current: 4A
- Rated voltage: 60V
- Temperature range: -40°C to 80°C (fixed), -25°C to 80°C (flexible)
- Protection rating: IP65/IP67/IP68
- Resistance to oils, chemicals, UV, hydrocarbons, and microbe resistance
- Flame resistance: DIN UL Style 20549, halogen-free according to DIN VDE 0472 part 815
- Contact resistance: <5 mΩ
- Insulation resistance: > 100 MQ at 20°C
- Conductor resistance: < 78 Ω/km at 20°C
- Number of insertion/withdrawal cycles: > 100
- Ambient temperature, operation: -25°C to 90°C (plug/socket)
- Compliance: UL Listed, cUL Listed, GOST
Buy the Phoenix Contact Series Sensor/Actuator Cable: SAC3P100PURM8FS
Order the Phoenix Contact SAC3P100PURM8FS sensor and actuator cable online today for secure, durable, and flexible connections in industrial automation. With a length of 10 meters and halogen-free PUR insulation, this cable offers IP65/IP68 protection, excellent chemical and UV resistance, and robust construction for demanding environments. Its twisted pair conductors ensure reliable signal integrity, and the flame-resistant, halogen-free material enhances safety and durability. Perfect for sensor, actuator, and control system installations in industrial settings, ensuring long-lasting performance and ease of use.
Buy Phoenix Contact SAC3P100PURM8FS now and experience unmatched reliability and performance in industrial sensor connections with halogen-free, flexible cable.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC3P100PURM8FS?
You can click on the BUY or RFQ button to purchase SAC3P100PURM8FS from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC3P100PURM8FS?
You can download the SAC3P100PURM8FS datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC3P100PURM8FS?
Phoenix Contact
