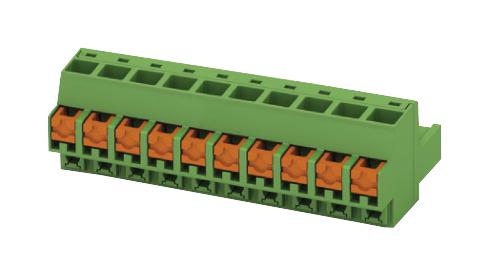

Phoenix Contact FKCOR2510ST508 PCB Connector

The FKCOR 2.5/10-ST-5.08 from Phoenix Contact is a 5.08 mm pitch, 10-pole female printed circuit board connector. Designed for ease of installation, it features a push-in connection that requires no tools, with an intuitive, color-coded actuation lever for quick operation. The connector is equipped with spring-loaded, tin-plated contacts that support solid conductor cross-sections from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG). It offers rated voltages of up to 630 V and supports a rated surge voltage of 4 kV. The nominal current capacity is 12 A, with a stripping length of 10 mm. The connector's design facilitates simplified cabling for DIN-rail-mounted devices and can be combined with other connectors in the MSTB 2.5 range for versatile applications, especially in industrial settings.

View FKCOR2510ST508Datasheet [pdf]

Buy the Phoenix Contact FKCOR 2.5/10-ST-5.08 – Reliable PCB Connector for Industrial Applications

Discover the Phoenix Contact FKCOR 2.5/10-ST-5.08 PCB connector, designed for reliable industrial applications. It features a push-in connection method that allows tool-free, quick wiring of DIN-rail devices. With 10 positions, a 5.08 mm pitch, and a maximum rated voltage of 630 V, this connector is ideal for robust and flexible electrical connections. Its tin-plated contacts support solid and flexible conductors from 0.2 mm² to 2.5 mm², providing safe, efficient, and maintenance-friendly installation in various industrial control and automation systems. Order online now to optimize your project wiring!

Order your Phoenix Contact FKCOR 2.5/10-ST-5.08 today and enhance your industrial wiring with a safe, efficient, and tool-free PCB connection solution.
