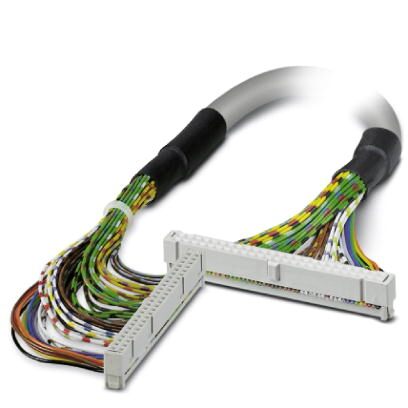

Phoenix Contact FLK50EZDR50KONFEK 50-Position Round Cable Set
The PHOENIX CONTACT FLK 50/EZ-DR/ 50/KONFEK cable is a pre-assembled round cable set designed for connecting field-level devices to controller systems. It utilizes IDC/FLK socket strips on both ends, simplifying wiring and reducing installation time. This cable is suitable for applications requiring reliable data transmission and power delivery, commonly found in industrial automation and control systems. It supports various controllers including Siemens S7-300/400 and Schneider Electric Modicon TSX QUANTUM, offering flexibility in system integration. The cable is also compliant with various standards like IEC 60332-1 for flame resistance and DIN VDE 0472 for oil resistance.
Phoenix Contact FLK50EZDR50KONFEK 50-Position Round Cable Set Specifications:
- Nominal Voltage UN: < 50 V AC / 60 V DC
- Max. Current Carrying Capacity per Path: 1 A
- Max. Conductor Resistance: 0.16 Ω/m
- Cable Length: 0.5 m
- Single Wire Cross Section: 0.14 mm²
- Single Wire Cross Section AWG: 26
- Conductor Construction: 7 litz wires
- Single Wire Material: Cu tin-plated
- External Diameter: 10.3 mm
- Cable Preassembly: Insulation displacement, IEC 60352-4/DIN EN 60352-4
- Shielding: no
- Outer Sheath Material: PVC
- External Sheath Color: gray RAL 7035
- Ambient Temperature (Operation): -20 °C ... 50 °C
- Ambient Temperature (Storage/Transport): -20 °C ... 70 °C
- Flame Resistance: IEC 60332-1 / DIN VDE 0482 Part 332-1
- Resistance to Oil: DIN VDE 0472 Part 803, test type B
- Gasoline Resistance: against occasional splashes
- Connection 1 Name: Field level
- Connection 1 Method: IDC/FLK socket strip
- Connection 1 Connections: 1
- Connection 1 Positions: 50
- Connection 1 Pitch: 2.54 mm
- Connection 2 Name: Controller level
- Connection 2 Method: IDC/FLK socket strip
- Connection 2 Connections: 1
- Connection 2 Positions: 50
- Connection 2 Pitch: 2.54 mm
- Supported Controllers: SIEMENS S7-300/ET 200 M, SIEMENS S7-400, Schneider Electric Modicon TSX QUANTUM, ALLEN-BRADLEY ControlLogix, ALLEN-BRADLEY PLC 5, HONEYWELL Experion PKS C200
