Phoenix Contact SACCDSIM12MS8CONM16 M12 Feed-Through Connector
The M12 panel feed-through connector is a flush-type plug with 8 positions, featuring a straight solder connection and M16 rear/mounting thread. Designed for signal, data, and power transmission, it offers IP67 protection, high durability, and quick locking with SPEEDCON system. Suitable for automation and industrial applications, it withstands operating temperatures from -25°C to 85°C, with a rated current of 2A, voltage of 30V, and surge voltage of 0.8kV. Its corrosion-resistant materials ensure long-term reliability in harsh environments.
Phoenix Contact SACCDSIM12MS8CONM16 M12 Feed-Through Connector Specifications:
- Number of positions: 8
- Rated current at 40°C: 2A
- Rated voltage: 30V
- Rated surge voltage: 0.8kV
- Pin length: 6 mm
- Degree of protection: IP67
- Ambient temperature (operation): -25°C to 85°C
- Material: Contact - CuZn, Au-plated; Sealing - NBR; Housing - Zinc die-cast, nickel-plated
- Connection method: Solder pins
- Standards: IEC 61076-2-101
- In uses: Rear mounting with M16 x 1.5 thread, anti-rotation protection
- Insertion/withdrawal cycles: > 100
- Flammability rating: UL 94 V-0

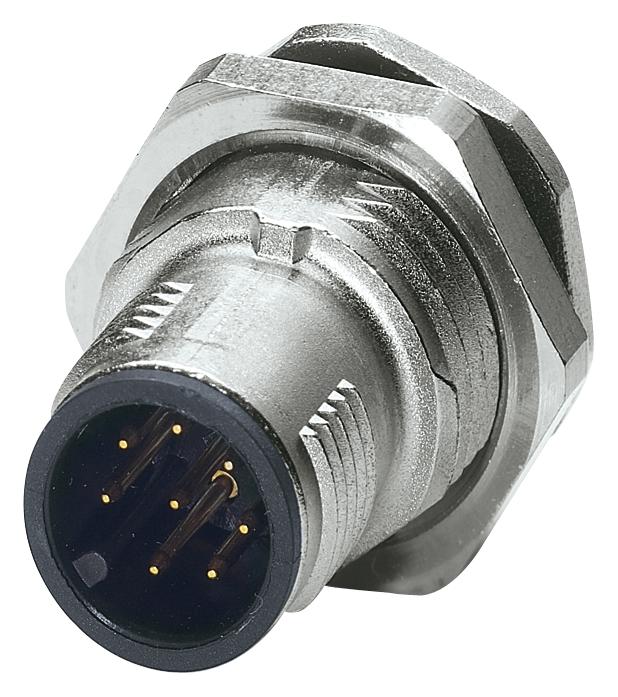

Buy the Buy Phoenix Contact Panel Feed-Through Part Number SACCDSIM12MS8CONM16 Online
Purchase the Phoenix Contact M12 feed-through connector online for robust industrial applications. Featuring IP67 protection, solder connection, quick SPEEDCON locking, and suitable for automation systems. With an operating temperature range from -25°C to 85°C, rated at 2A and 30V, this connector ensures reliable data, power, and signal transmission in harsh environments. Its durable zinc die-cast housing, gold-plated contacts, and easy mounting make it ideal for automation and control systems, ensuring long-term performance and safety in demanding industrial settings.
Get Phoenix Contact SACCDSIM12MS8CONM16 today—designed for reliable signal transmission and long-lasting industrial performance.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCDSIM12MS8CONM16?
You can click on the BUY or RFQ button to purchase SACCDSIM12MS8CONM16 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCDSIM12MS8CONM16?
You can download the SACCDSIM12MS8CONM16 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCDSIM12MS8CONM16?
Phoenix Contact
