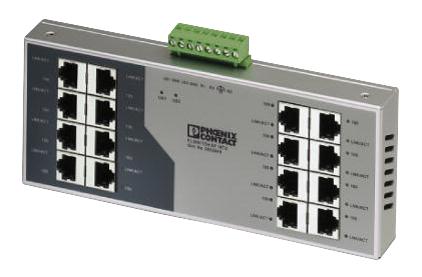

Phoenix Contact FLSWITCHSF16TX Industrial Ethernet Switch
The industrial Ethernet switch offers 16 RJ45 ports supporting 10/100 Mbps speeds with auto negotiation and autocrossing. It features relay contacts for alarm signaling, local diagnostic LEDs, and security options with cable locking. Designed for robust industrial environments, it supports unmanaged network configurations with plug-in/screw connections. Key features include redundant 24V DC power supply, EMC compliance, and DIN rail mounting. Suitable for complex industrial automation, it ensures reliable data transmission, easy installation, and expansion for scalable industrial networking solutions.
Phoenix Contact FLSWITCHSF16TX Industrial Ethernet Switch Specifications:
- Ports: 16 RJ45, 10/100 Mbps auto negotiation
- Transmission length: 100 m per segment
- Dimensions: Width 205 mm, Height 94.3 mm, Depth 30 mm
- Ambient temperature: 0°C to 55°C, storage -20°C to 70°C
- Operating humidity: 5% to 95%, non-condensing
- Power supply: 24 V DC, range 18.5V to 30.2V, typical 300 mA
- Housing: Aluminum, DIN rail mount, block design
- EMC compliance: IEC 61000-6-2, EN 55022
- Protection class: IP20
- Interfaces: Ethernet RJ45, potential-free signaling contact
- Signal LEDs: Data receive, link status, activity, supply voltage
- Standards: IEEE 802.3, unmanaged switch, store-and-forward mode
- Certifications: UL, cUL, EAC, KC, CE
- Environmental: Up to 1500 m altitude, air pressure 86-108 kPa
Buy the Phoenix Contact FLSWITCHSF16TX – Reliable Industrial Ethernet Switch for Industrial Applications
Purchase the Phoenix Contact Ethernet switch online for reliable industrial networking. Featuring 16 RJ45 ports supporting 10/100 Mbps speeds, it ensures robust at-scale data transmission with auto negotiation, relay alarm contacts, and secure cable locking. Its rugged aluminum housing is designed for DIN rail mounting, making it ideal for demanding automation environments. Easy to install, expand, and maintain, this switch guarantees high performance, EMC compliance, and long-term durability for diverse industrial applications. Order now to enhance your network infrastructure with proven quality.
Get Phoenix Contact FLSWITCHSF16TX today—built for robust industrial networking and seamless automation reliability.
