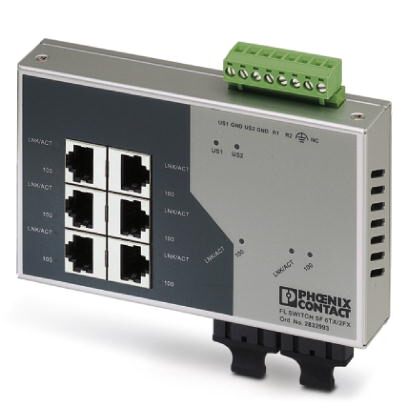

Phoenix Contact FLSWITCHSF6TX2FX Industrial Ethernet Switch

Phoenix Contact FLSWITCHSF6TX2FX Industrial Ethernet Switch Specifications:

• Packing unit: 1 pc
• Weight per Piece (excluding packing): 442.2 g
• Custom tariff number: 85176200
• Country of origin: Taiwan
• Width: 135 mm
• Height: 115.3 mm
• Depth: 30 mm
• Degree of protection: IP20
• Ambient temperature (operation): 0 °C ... 55 °C
• Ambient temperature (storage/transport): -20 °C ... 70 °C
• Permissible humidity (operation): 5 % ... 95 % (non-condensing)
• Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
• Air pressure (operation): 86 kPa ... 108 kPa (up to 1500 m above mean sea level)
• Air pressure (storage/transport): 66 kPa ... 108 kPa (up to 3500 m above mean sea level)
• Interface 1: Ethernet (RJ45)
• No. of ports (RJ45): 6
• Connection method (RJ45): RJ45
• Note on connection method (RJ45): Auto negotiation and autocrossing
• Transmission physics (RJ45): Ethernet in RJ45 twisted pair
• Transmission speed (RJ45): 10/100 MBit/s
• Transmission length (RJ45): 100 m (per segment)
• Signal LEDs: Data receive, link status
• Interface 2: Fiber optic interface
• No. of ports (SC multi-mode): 2
• Connection method (SC): SC
• Transmission physics (SC): multi-mode fiberglass
• Transmission speed (SC): 100 MBit/s (full duplex)
• Transmission length (SC): 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
• Wavelength: 1300 nm
• Interface 4: Potential-free signaling contact
• Connection method (signaling contact): Plug-in/screw connection via COMBICON
• Basic functions: Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
• Status and diagnostic indicators: LEDs: US1, US2(redundant voltage supply), link and activity per port
• Cascading depth: Network, linear, and star structure: any
• Maximum conductor length (twisted pair): 100 m
• Supply voltage: 24 V DC (redundant)
• Residual ripple: 3.6 VPP(within the permitted voltage range)
• Supply voltage range: 18.5 V DC ... 30.2 V DC
• Typical current consumption: typ. 240 mA (at US= 24 V DC)
• Mounting type: DIN rail
• Housing material: Aluminum
• Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
• Developed in acc. with standard: IEC 61000-6.2
• Test standard (ESD): IEC 61000-4-2
• Test result (ESD): Criterion B
• Test standard (radiated interference): IEC 61000-4-3
• Test result (radiated interference): Criterion A
• Test standard (burst): IEC 61000-4-4
• Test result (burst): Criterion B
• Test standard (surge): IEC 61000-4-5
• Test result (surge): Criterion B
• Test standard (conducted interference): IEC 61000-4-6
• Test result (conducted interference): Criterion A
• Test standard (magnetic fields): IEC 61000-4-8
• Test result (magnetic fields): Criterion A
• Noise emission: EN 55022
• Test result (emitted interference): Criterion A
• Test section: 500 V DC 1 min
• Noise immunity: EN 61000-6-2:2005
• Vibration (storage/transport): 5g, 150 Hz, in acc. with IEC 60068-2-6
• Free from substances that could impair the application of coating: In acc. with VW specification
• Vibration (operation): In acc. with IEC 60068-2-6: 5g, 150 Hz
• eCl@ss 4.0: 27250501
• eCl@ss 4.1: 27250501
• eCl@ss 5.0: 27250501
• eCl@ss 5.1: 27250501
• eCl@ss 6.0: 19170106
• eCl@ss 7.0: 19170106
• eCl@ss 8.0: 19170106
• ETIM 2.0: EC000734
• ETIM 3.0: EC000734
• ETIM 4.0: EC000734
• ETIM 5.0: EC000734
• UNSPSC 6.01: 43172015
• UNSPSC 7.0901: 43201404
• UNSPSC 11: 43172015
• UNSPSC 12.01: 43201410
• UNSPSC 13.2: 43201410
