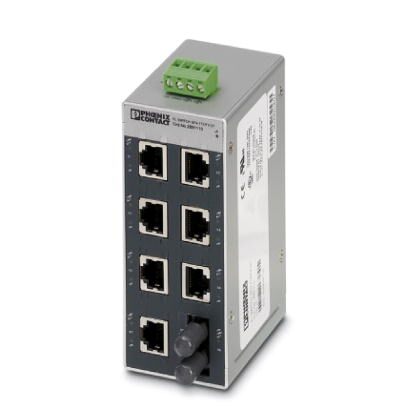

Phoenix Contact FLSWITCHSFN7TXFXST Industrial Ethernet Switch
The Phoenix Contact FL SWITCH SFN 7TX/FX ST is a robust, unmanaged industrial Ethernet switch designed for demanding environments. It provides 7 RJ45 twisted pair ports and 1 fiber optic port (ST multi-mode) for flexible network expansion. The switch supports 10/100 Mbps data transmission speeds and features auto-negotiation and autocrossing for simplified setup. It is DIN rail mountable, making it suitable for industrial control cabinets. The switch also includes diagnostic LEDs for port status monitoring and supports Quality of Service (QoS) prioritization. It meets various EMC and vibration standards, ensuring reliable operation in harsh conditions.
Phoenix Contact FLSWITCHSFN7TXFXST Industrial Ethernet Switch Specifications:
- Packing unit: 1 STK
- GTIN: None
- Width: 50 mm
- Height: 120 mm
- Depth: 70 mm
- Degree of protection: IP20
- Ambient temperature (operation): 0 °C ... 60 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Permissible humidity (operation): 5 % ... 95 % (non-condensing)
- Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
- Air pressure (operation): 86 kPa ... 108 kPa (up to 1500 m above mean sea level)
- Air pressure (storage/transport): 66 kPa ... 108 kPa (up to 3500 m above mean sea level)
- No. of ports (RJ45): 7
- Connection method (RJ45): RJ45
- Transmission physics (RJ45): Ethernet in RJ45 twisted pair
- Transmission speed (RJ45): 10/100 MBit/s
- No. of ports (Fiber optic): 1 (ST multi-mode)
- Connection method (Fiber optic): ST
- Transmission physics (Fiber optic): multi-mode fiberglass
- Transmission speed (Fiber optic): 100 MBit/s (full duplex)
- Transmission length (Fiber optic): 2000 m
- Wavelength: 1300 nm/1310 nm
- Basic functions: Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
- Status and diagnostic indicators: LEDs: US, link and activity per port
- Cascading depth: Network, linear, and star structure: any
- Maximum conductor length (twisted pair): 100 m
- Supply voltage: 24 V DC
- Residual ripple: 3.6 VPP
- Supply voltage range: 9 V DC ... 32 V DC
- Typical current consumption: typ. 190 mA
- Mounting type: DIN rail
- Housing material: Aluminum
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
- Developed in acc. with standard: IEC 61000-6.2
- Test standard (ESD): IEC 61000-4-2
- Test result (ESD): Criterion B
- Test standard (radiated interference): IEC 61000-4-3
- Test result (radiated interference): Criterion A
- Test standard (burst): IEC 61000-4-4
- Test result (burst): Criterion B
- Test standard (conducted interference): IEC 61000-4-6
- Test result (conducted interference): Criterion A
- Test standard (magnetic fields): IEC 61000-4-8
- Test result (magnetic fields): Criterion A
- Test standard (emitted interference): EN 55022
- Test result (emitted interference): Criterion A
- Test voltage: 500 V DC 1 min.
- Noise emission: EN 61000-6-4
- Noise immunity: EN 61000-6-2:2005
- Vibration (storage/transport): 5g, 150 Hz
- Free from substances: In acc. with VW specification
- Vibration (operation): In acc. with IEC 60068-2-6: 5g, 150 Hz
- UL Listed: None
- cUL Listed: None
- EAC: None
- cULus Listed: None
