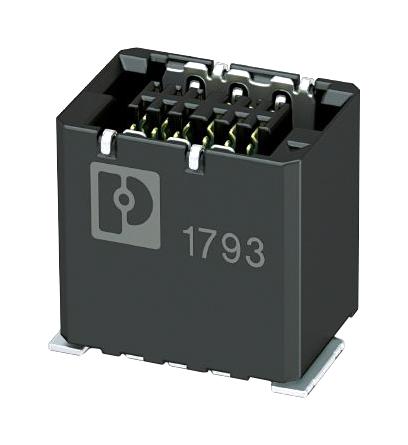

Phoenix Contact FP0812FVSH785 High-Speed PCB Connectors
The FINEPITCH series offers both shielded and unshielded board-to-board connectors designed for high-speed signal and data transmission in industrial applications. With pitches of 0.8 mm and 1.27 mm, these connectors support various PCB orientations, stack heights, and configurations like coplanar, mezzanine, and wire-to-board connections. Featuring high reliability, vibration resistance, EMI shielding, and compatibility with automated soldering, they are ideal for space-saving, high-density device design with capacities supporting data rates up to 16 Gbps and over 500 insertion cycles for durability.
Phoenix Contact FP0812FVSH785 High-Speed PCB Connectors Specifications:
- Pitch: 0.8 mm and 1.27 mm
- Number of positions: 12, 16, 20, 26, 32, 40, 50, 68, 80
- Nominal current: 1.4 A at 20°C (50-pos, 52-pos)
- Insulation resistance: Min. 5 GΩ
- Contact resistance: Max. 20 mΩ
- Test voltage: 500 VAC
- Air clearance and creepage: Min. 0.25 mm (0.8 mm series), Min. 0.4 mm (1.27 mm series)
- Operation temperature: -55°C to +125°C
- Durability: 500 insertion cycles
- Data transmission: Up to 16 Gbps
- EMC shielding: Shielded versions offer excellent EMI protection
- Material: Cu alloy, Ni, Au, Sn, and LCP insulation
- Standards: UL 1977
- Process: SMD soldering, Tape-on-reel packaging
Buy the Phoenix Contact FP0812FVSH785 – Reliable High-Speed PCB Connectors for Industrial Applications
Secure your supply chain with the Phoenix Contact FP0812FVSH785 series connectors, offering exceptional reliability, high data rates up to 16 Gbps, and versatile installation options ideal for demanding industrial equipment. These connectors support multiple PCB configurations, including coplanar and stacked arrangements, with durable contact systems ensuring over 500 insertion cycles. Thanks to advanced shielding and precise manufacturing, they guarantee excellent EMI protection and signal integrity. Available in tape-on-reel packaging, making automation and assembly straightforward, these connectors meet rigorous standards for durability and performance in high-speed data transfer environments.
Order your Phoenix Contact FP0812FVSH785 series high-speed PCB connectors today and ensure robust, space-efficient, and reliable connections for your industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact FP0812FVSH785?
You can click on the BUY or RFQ button to purchase FP0812FVSH785 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FP0812FVSH785?
You can download the FP0812FVSH785 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FP0812FVSH785?
Phoenix Contact
