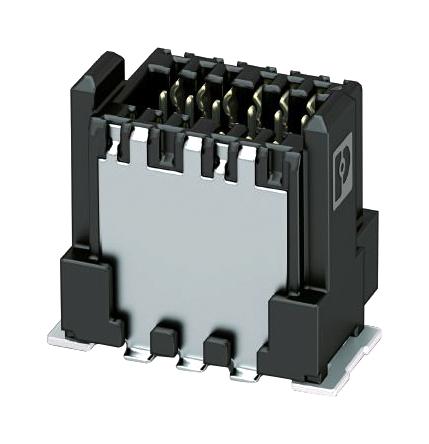

Phoenix Contact FP0812MVSH265 Shielded Male Connector
The FP 0,8/ 12-MV-SH 2,65 is a rugged, shielded vertical male connector from the FINEPITCH series, designed for high-speed digital data transmission up to 16 Gbps. It features a double-sided hermaphroditic contact system with gull-wing solder pins for reliable and automated soldering, optimized for space-constrained PCB applications. Its durable construction supports 500 insertion cycles, with excellent EMI shielding and tolerance compensation up to 0.7 mm center offset and 4° inclination, ensuring robust and interference-free connections in industrial environments.
Phoenix Contact FP0812MVSH265 Shielded Male Connector Specifications:
- Pitch: 0.8 mm
- Number of positions: 12, 20, 32, 52, 80
- Nominal current: 1.4 A at 20°C
- Insulation resistance: Min. 5 GΩ
- Contact resistance: Max. 20 mΩ
- Test voltage: 500 VAC
- Air clearance and creepage: Min. 0.25 mm
- Operating temperature: -55°C to +125°C
- Insertion/withdrawal force: <12 N
- Service life: 500 insertion cycles
- EMC properties: Shielded, excellent EMI protection
- Metal contact: Cu alloy, Ni/Au surface
- Soldering area: Sn
- Flammability: UL 94 V-0
- Process: SMD soldering, Tape-on-reel packaging
- Creepage resistance: IEC 60112, 150 V
- Coplanarity: <0 mm
Buy the Phoenix Series FINEPITCH FP0812MVSH: Shielded Male Connector
Order the Phoenix FINEPITCH FP0812MVSH shielded male connector online and benefit from high-speed data transfer up to 16 Gbps, excellent EMI shielding, and long-lasting Performance. Designed for space-saving PCB assembly, it features hermaphroditic double contacts with gull-wing solder pins for automation. The connector supports 500 insertion cycles, providing robust and interference-free connections for industrial, communication, and automation applications. Easy to handle with tape-on-reel packaging for quick and efficient assembly. Shop now for reliable high-frequency connectivity.
Buy Phoenix series FP0812MVSH shielded male connector now and experience unmatched reliability and high-speed data transmission with excellent EMI protection.
