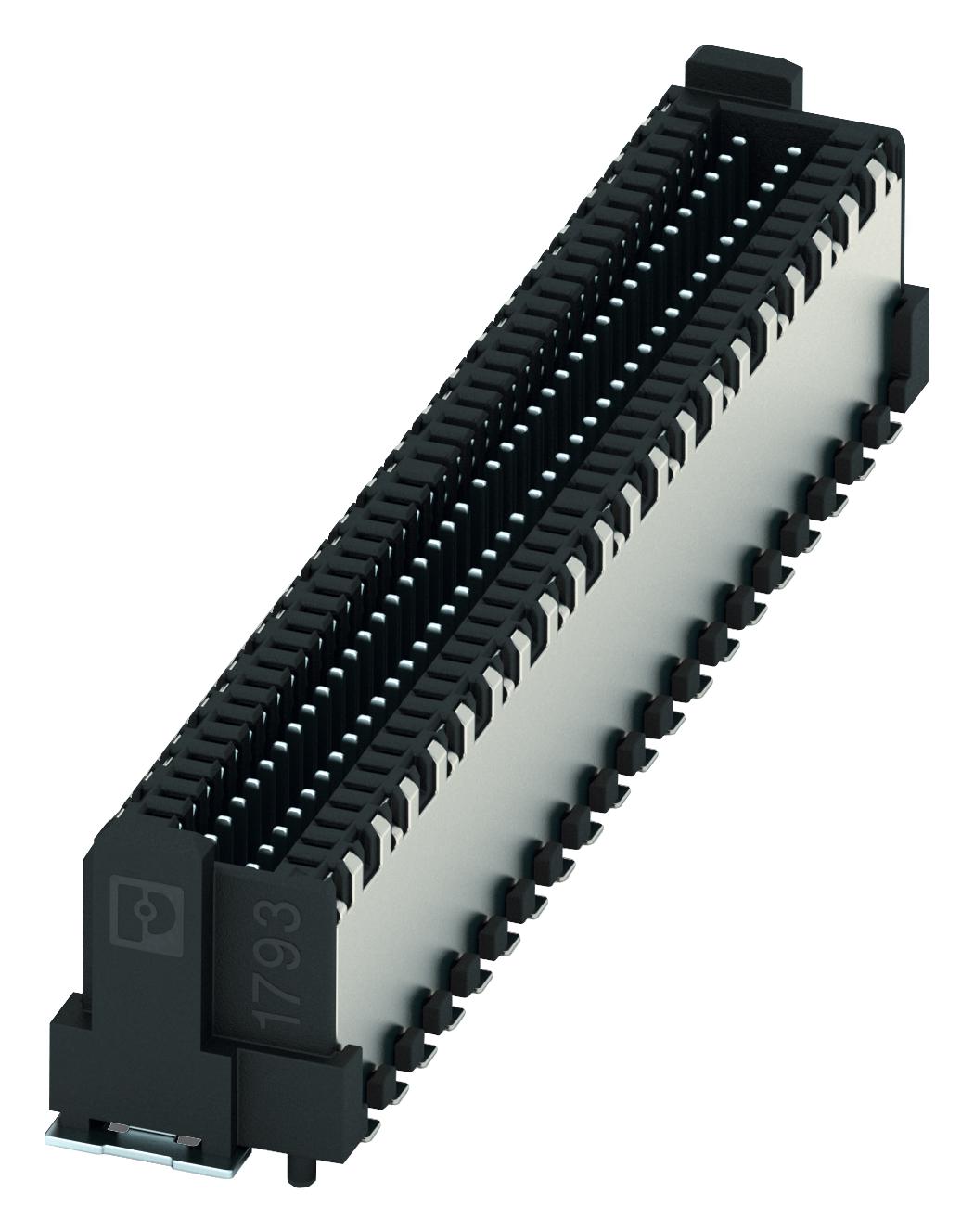

Phoenix Contact FP0880MVSH265 Shielded Male Connector
The FP 0,8/ 80-MV-SH is a shielded vertical male connector designed for high-density PCB applications with 0.8 mm pitch. It features excellent electromagnetic compatibility, robust contact integrity, and reliable soldering for high-speed data transmission up to 16 Gbps. With a compact height of 2.65 mm, this connector supports stack heights from 6 to 12 mm and offers high tolerance compensation, making it suitable for automated SMT processes. Its design ensures vibration resistance, secure connections, and optimal EMC shielding for industrial electronics.
Phoenix Contact FP0880MVSH265 Shielded Male Connector Specifications:
- Pitch: 0.8 mm
- Number of positions: 12, 20, 32, 52, 80
- Height: 2.65 mm
- Nominal current: 1.4 A at 20°C
- Insulation resistance: >5 GΩ
- Contact resistance: Max. 20 mΩ
- Test voltage: 500 VAC
- Air clearance and creepage: Min. 0.25 mm
- Operational temperature: -55°C to +125°C
- Durability: 500 insertion cycles
- Data transmission speed: Up to 16 Gbps
- EMC shielding: Yes
- Surface of contact: Ni; Au
- Soldering: SMD, tape-on-reel packaging
- Approval: UL 1977
Buy the Phoenix Series FINEPITCH FP0880MVSH265
Order the Phoenix FP0880MVSH265 shielded male connector online today and benefit from high-speed data transfer up to 16 Gbps, excellent electromagnetic compatibility, and vibration-proof contact reliability. Designed for high-density PCB design, this connector offers robust connection stability, easy automated processing with tape-on-reel packaging, and a compact form factor of 2.65 mm height. Perfect for industrial, automation, and high-performance electronics where dependable, interference-free signal transmission is essential.
Buy Phoenix FP0880MVSH265 now and experience robust, high-speed PCB connections with excellent EMI shielding and reliable performance.
Frequently Asked Questions
Where can I buy Phoenix Contact FP0880MVSH265?
You can click on the BUY or RFQ button to purchase FP0880MVSH265 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FP0880MVSH265?
You can download the FP0880MVSH265 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FP0880MVSH265?
Phoenix Contact
