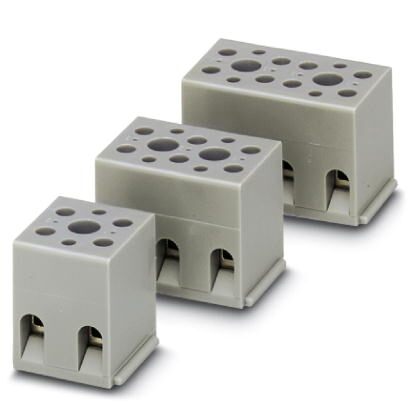

Phoenix Contact G52 2-Position Device Terminal Block

Phoenix Contact G52 2-Position Device Terminal Block Specifications:

• Number of positions: 2
• Number of levels: 1
• Number of connections: 4
• Potentials: 2
• Nominal cross section: 4 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 1.02 W
• Maximum load current: 32 A (with 4 mm² conductor cross section)
• Nominal current IN: 32 A
• Nominal voltage UN: 500 V
• Open side panel: No
• Terminal block mounting: When attaching the product to the mounting surface, please ensure that the housing is not damaged when tightening the center screw
• Shock protection test specification: IEC 60529:2001-02
• Back of the hand protection: guaranteed
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight: 0.2 mm² / 0.2 kg, 1.5 mm² / 0.4 kg, 4 mm² / 0.9 kg
• Result of tensile test: Test passed
• Conductor cross section tensile test: 0.2 mm², 1.5 mm², 4 mm²
• Tractive force setpoint: 10 N, 40 N, 60 N
• Result of voltage-drop test: Test passed
• Requirements, voltage drop: ≤ 3.2 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 4 mm²
• Short-time current: 0.48 kA
• Result of thermal test: Test passed
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1): 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 20 mm
• Length: 22 mm
• Height: 24 mm
• Screw thread: M3
• Stripping length: 8 mm
• Tightening torque, min: 0.6 Nm
• Tightening torque max: 0.8 Nm
• Connection method: Screw connection
• Conductor cross section solid min: 0.2 mm²
• Conductor cross section solid max: 4 mm²
• Conductor cross section AWG min: 24
• Conductor cross section AWG max: 12
• Conductor cross section flexible min: 0.2 mm²
• Conductor cross section flexible max: 4 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve min: 0.25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max: 4 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min: 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max: 2.5 mm²
• 2 conductors with same cross section, solid min: 0.2 mm²
• 2 conductors with same cross section, solid max: 1.5 mm²
• 2 conductors with same cross section, stranded min: 0.2 mm²
• 2 conductors with same cross section, stranded max: 1.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max: 1 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min: 0.25 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max: 1.5 mm²
• Internal cylindrical gage: A3
