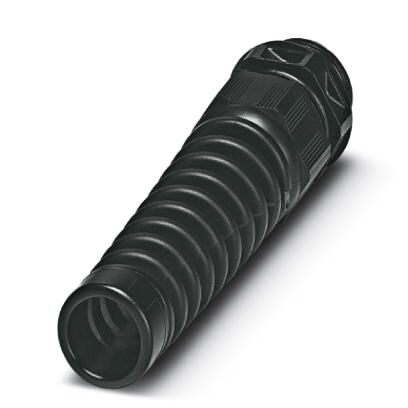

Phoenix Contact GINBM16S68NPEPDSBK M16 Cable Gland
The PHOENIX CONTACT G-INB-M16-S68N-PEPDS-BK cable gland provides a secure and sealed connection for cables in industrial applications. Constructed from durable PA material, it offers excellent resistance to environmental factors. The integrated bend protection sleeve enhances cable longevity, while the halogen-free EPDM sealing ensures a safe and reliable seal. This cable gland is ideal for applications requiring IP68 and IP69 protection, such as machinery, automation systems, and outdoor installations. It is compatible with cables ranging from 4.5mm to 10mm in diameter and features a M16 x 1.5 connecting thread for easy integration.
Phoenix Contact GINBM16S68NPEPDSBK M16 Cable Gland Specifications:
- Material: PA
- External Cable Diameter: 4.5 mm ... 10 mm
- Connecting Thread: M16 x 1.5
- Color: jet black RAL 9005
- Degree of Protection: IP68 (5 bar / 0.5 h), IP69 (DIN EN 60529 / IEC 60529)
- Ambient Temperature: -40 °C ... 100 °C (static)
- Glow Wire Ignition Temperature: 750.00 °C
- Shielded: no
- Torque (Union Nut): 1.5 Nm
- Torque (Support): 3.5 Nm
- Impact Category: 2
- Strain Relief Execution: A
- Halogen-free: yes
- Packing Unit: 1 pc
- Minimum Order Quantity: 10 pc
- Custom Tariff Number: 39269097
- Country of Origin: Germany
- Weight per Piece: 14.000 g
- eCl@ss 10.0.1: 27144432
- eCl@ss 4.0: 27141200
- eCl@ss 4.1: 27141200
- eCl@ss 5.0: 27149100
- eCl@ss 5.1: 27149100
- eCl@ss 6.0: 27149100
- eCl@ss 7.0: 27149109
- eCl@ss 8.0: 27149109
- eCl@ss 9.0: 27144432
- ETIM 5.0: EC000441
- ETIM 6.0: EC000441
- ETIM 7.0: EC000441
- UNSPSC 13.2: 39121311
- UNSPSC 18.0: 39121311
- UNSPSC 19.0: 39121311
- UNSPSC 20.0: 39121311
- UNSPSC 21.0: 39121311
