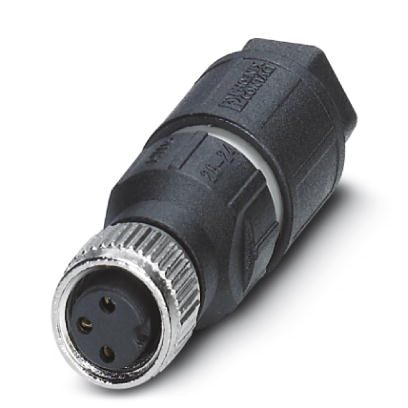

Phoenix Contact 1441040 sensor actuator connector
This universal 3-position sensor and actuator connector features a straight M8 socket with an A-coded configuration, ideal for industrial sensor connections. It employs an insulation displacement connection, enabling quick and secure wiring without stripping wires. The connector's zinc die-cast knurled outer shell is nickel-plated, ensuring durability and corrosion resistance. It supports external cable diameters from 2.5 mm to 5 mm, providing flexibility for various installation environments. The connector is rated IP65 for protection against dust and water, suitable for industrial automation applications requiring reliable sensor and actuator connections.
Phoenix Contact 1441040 sensor actuator connector Specifications:
- Connector Type: Sensor/actuator connector
- Number of Positions: 3
- Socket Type: Straight M8
- Configuration: A-coded
- Connection Method: Insulation displacement
- Material: Zinc die-cast, nickel-plated
- External Cable Diameter Range: 2.5 mm to 5 mm +0.2 mm
- Degree of Protection: IP65
- Ambient Temperature: -25°C to 80°C
- Insulation Resistance: > 100 MΩ
- Certifications: UL Recognized, cUL Recognized, EAC
- Standards: eCl@ss 6.0 27279221, 7.0 27440104, 8.0 27440104, 9.0 27440102; UNSPSC 6.01 30211824, 7.0901 39121413, 11 39121413, 12.01 39121413, 13.2 39121413
Buy the Buy Phoenix Contact Sensor/Actuator Connector Part Number 1441040 Online
Secure your industrial sensor and actuator connections easily by ordering the Phoenix Contact 1441040 sensor/actuator connector online. Featuring a straight M8 socket with an A-coded configuration, this connector employs insulation displacement technology for fast, reliable wiring without stripping. The zinc die-cast, nickel-plated shell offers corrosion resistance and durability, supporting external cable diameters from 2.5 mm to 5 mm. Rated IP65, it performs reliably in harsh environments, making it ideal for automation, factory automation solutions, and industrial sensor wiring needs. Purchase now for dependable connectivity.
Order your Phoenix Contact 1441040 sensor/actuator connector today and ensure reliable, quick connections with durable, zinc-plated IP65 protection.
