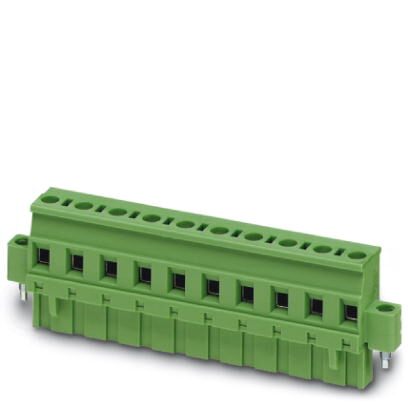

Phoenix Contact GMVSTBR2510STF762 PCB Connector 10 Position
The PHOENIX CONTACT GMVSTBR 2 5/10-STF-7 62 is a robust and reliable printed-circuit board connector designed for a variety of industrial applications. This connector features 10 positions with a 7.62mm pitch, making it suitable for dense circuit board layouts. The screw connection with tension sleeve ensures a secure and durable connection, ideal for applications requiring high reliability. It is rated for a nominal current of 12A and a rated voltage of 630V, making it suitable for power distribution and signal transmission in industrial control systems, automation equipment, and other demanding environments. The connector's green color provides visual differentiation and easy identification on the PCB.
Phoenix Contact GMVSTBR2510STF762 PCB Connector 10 Position Specifications:
- Nominal current: 12 A
- Rated voltage (III/2): 630 V
- Number of positions: 10
- Pitch: 7.62 mm
- Connection method: Screw connection with tension sleeve
- Color: green
- Contact surface: Tin
- Packing unit: 1 pc
- Weight per Piece: 26.34 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Dimension a: 68.58 mm
- Insulating material group: I
- Rated surge voltage (III/3): 6 kV
- Rated surge voltage (III/2): 6 kV
- Rated surge voltage (II/2): 6 kV
- Range of articles: GMVSTBR 2,5/..-STF
- Flammability rating according to UL 94: V0
- Internal cylindrical gage: A3
- Stripping length: 7 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 1 mm²
- Minimum AWG according to UL/CUL: 30
- Maximum AWG according to UL/CUL: 12
