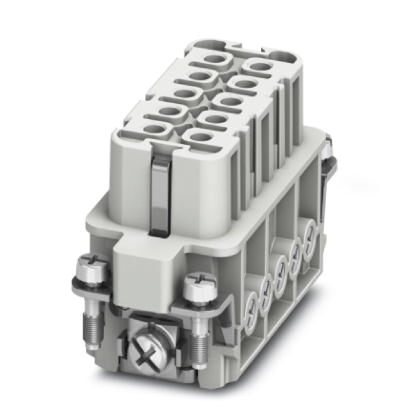

Phoenix Contact HCA10IUTF 10-Position Female Insert
The PHOENIX CONTACT HC-A10-I-UT-F is a robust female insert within the A10 series, engineered for reliable connections in demanding industrial environments. This 10-position insert features a screw connection mechanism, ensuring secure and dependable terminations. Designed for compatibility with HC-D15 housing, it is suitable for a wide range of applications requiring a compact and reliable connection solution. The insert is rated for 250V and 20A, making it suitable for various power transmission needs. It can be coded with a plastic coding profile for test pin applications.
Phoenix Contact HCA10IUTF 10-Position Female Insert Specifications:
- Packing unit: 1 STK
- GTIN: 4046356285032
- Weight per Piece: 40.000 g
- Custom tariff number: 85369010
- Country of origin: China
- Note: for housing HC-D15
- Connection method: Screw connection
- Tightening torque: 0.5 Nm
- Screwdriver blade: 0.5 x 3.5 mm
- Degree of pollution: 3
- Overvoltage category: III
- Number of positions: 10+PE
- Insertion/withdrawal cycles: ≥ 500
- Size: D15
- Conductor cross section: 0.5 mm² ... 2.5 mm² (Applies to stranded conductors with ferrules)
- Connection cross section AWG: 20 ... 14
- Stripping length of the individual wire: 7 mm
- Assembly instructions: Connectors may be operated only when there is no load/voltage.
- Ambient temperature (operation): -40 °C ... 125 °C
- Contact material: Copper alloy
- Contact surface material: Ag
- Contact carrier material: PC
- Rated voltage (III/3): 250 V
- Rated surge voltage: 4 kV
- Rated current: 20 A
- Connection in acc. with standard: IEC / EN
- Flammability rating according to UL 94: V0
