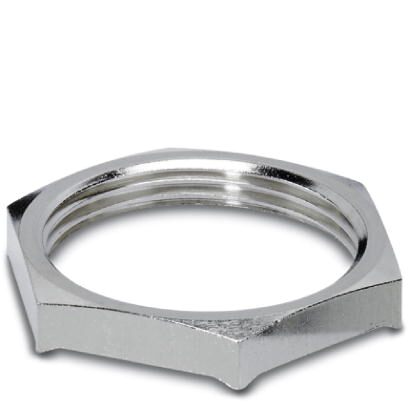

Phoenix Contact 1411270 EMV Nut M25
The Phoenix Contact 1411270 EMV nut is a crucial accessory for EMC cable glands, providing electromagnetic compatibility shielding. Constructed from brass and finished with nickel plating, it ensures durability and excellent conductivity. The nut is designed for threads M25 x 1.5 and is commonly used in industrial environments where signal integrity and noise reduction are critical. It's also suitable for removing non-conductive surface coatings from cable glands, simplifying installation and maintenance. This component contributes to the overall reliability of electrical systems by minimizing electromagnetic interference.
Phoenix Contact 1411270 EMV Nut M25 Specifications:
- Packing unit: 1 pc
- GTIN: 4046356924016
- Weight per Piece: 10.800 g
- Custom tariff number: 74153300
- Country of origin: Germany
- Length: 5.2 mm
- Connecting thread diameter: 25 mm
- Wrench size counter nut: 30 mm
- Hexagon angular dimension: 33.5 mm
- Ambient temperature operation: -70 °C ... 220 °C
- Material: Brass, nickel-plated
- Thread type on connection side: M25 x 1.5
- Color: silver
- Assembly instructions: for EMC cable glands, for removing a non-conductive surface coating
- Halogen-free: yes
- China RoHS: Environmentally Friendly Use Period = 50
- eCl@ss 10.0.1: 27144424
- eCl@ss 4.0: 27141200
- eCl@ss 4.1: 27141200
- eCl@ss 5.0: 27149100
- eCl@ss 5.1: 27149100
- eCl@ss 6.0: 27149100
- eCl@ss 7.0: 27069219
- eCl@ss 8.0: 27069219
- eCl@ss 9.0: 27144424
- ETIM 4.0: EC000129
- ETIM 5.0: EC000129
- ETIM 6.0: EC000940
- ETIM 7.0: EC000940
- UNSPSC 13.2: 31161716
