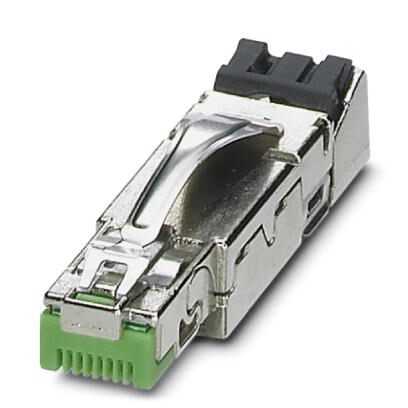

Phoenix Contact 1421126 RJ45 Connector
The PHOENIX CONTACT 1421126 RJ45 connector is a robust and reliable solution for network connections. Designed with an IP20 degree of protection, it safeguards against dust and provides a secure connection. The connector supports data transmission speeds up to 1 Gbps and is CAT5 rated, making it suitable for various networking applications. Its zinc die-cast housing ensures durability, while the IDC fast connection simplifies installation. Ideal for industrial environments requiring reliable and shielded network connectivity.
Phoenix Contact 1421126 RJ45 Connector Specifications:
- Number of positions: 8
- Degree of protection: IP20
- Transmission speed: 1 Gbps
- Category: CAT5 (IEC 11801:2002)
- Material: Zinc die-cast
- Connection method: IDC fast connection
- Connection cross section AWG: 23-22
- Cable exit: straight
- Insertion/withdrawal cycles: ≥ 750
- Conductor cross section: 0.23 mm² ... 0.32 mm² (solid)
- Wire diameter including insulation: ≤ 1.6 mm
- Ambient temperature (operation): -40 °C ... 70 °C
- Flammability rating according to UL 94: V0
- Housing material: Zinc die-cast
- Contact carrier material: PC
- Contact material: Copper alloy
- Contact surface material: Gold over nickel
- Transmission characteristics (category): CAT5 (IEC 11801:2002)
- Frequency range: to 100 MHz
- Rated current: 1.75 A
- Overvoltage category: I
- Contact resistance (Wire – IDC): 0.001 Ω
- Contact resistance (Litz wires – IDC): 0.005 Ω
- Packing unit: 1 STK
- Weight per Piece (excluding packing): 40.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Max. cable diameter: 5 mm ... 9 mm
- External cable diameter: 5 mm ... 9 mm
