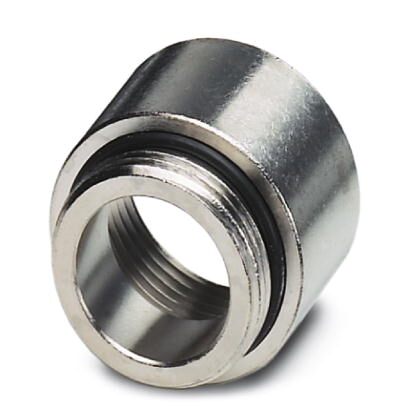

Phoenix Contact HCNPT12M20 NPT to M20 Adapter
The PHOENIX CONTACT HC-NPT-1/2-M20 adapter provides a reliable solution for connecting equipment with different thread types. Constructed from nickel-plated brass, this adapter offers excellent corrosion resistance and durability. Its IP68 rating ensures protection against dust and water ingress, making it ideal for harsh industrial applications. The adapter facilitates a secure and sealed connection between M20 and 1/2-inch NPT threads, commonly used in various machinery and automation systems. It is a crucial component for maintaining system integrity and preventing environmental damage.
Phoenix Contact HCNPT12M20 NPT to M20 Adapter Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 34.44 g
- Custom tariff number: 74199990
- Country of origin: Germany
- Length: 25 mm
- Length without connecting thread: 18.5 mm
- Connecting thread diameter: 20 mm
- Wrench size, union nut: 24 mm
- Hexagon angular dimension GRP: 24 mm
- Length of the connecting thread: 6.5 mm
- Degree of protection: IP68 (Depends on the screw connection used)
- Ambient temperature (operation): -20 °C ... 80 °C
- Material: Nickel-plated brass
- Cable gland material: Nickel-plated brass
- O-ring material: NBR
- Thread type on connection side: M20
- Thread type on seal side: 1/2-inch NPT
- eCl@ss 4.0: 27141209
- eCl@ss 4.1: 27141209
- eCl@ss 5.0: 27149109
- eCl@ss 5.1: 27149109
- eCl@ss 6.0: 27149109
- eCl@ss 7.0: 27149109
- eCl@ss 8.0: 27439207
- ETIM 2.0: EC000441
- ETIM 3.0: EC000441
- ETIM 4.0: EC000441
- ETIM 5.0: EC000938
- UNSPSC 6.01: 31261502
- UNSPSC 7.0901: 31261502
- UNSPSC 11: 31261502
- UNSPSC 12.01: 31261502
- UNSPSC 13.2: 31261502
- Approvals: EAC
