Phoenix Contact 2302159 Shielded Round Cable

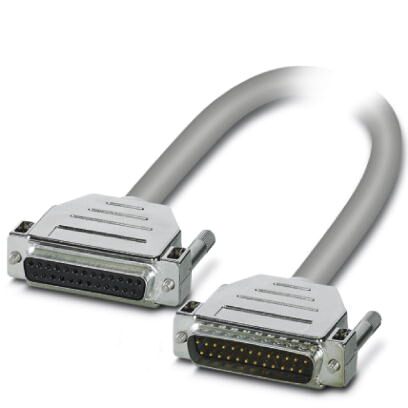

The Phoenix Contact Cable-D25SUB/B/S/200/KONFEK/S (part number 2302159) is a shielded round cable designed for robust data transmission in industrial settings. It connects a D-SUB socket strip (1x 25-position) to a D-SUB pin strip (1x 25-position) with a 2-meter length. The cable's shielding provides excellent protection against electromagnetic interference, ensuring reliable signal integrity. It's commonly used in automation systems, connecting controllers to field devices, and in applications requiring secure data transfer. The cable is suitable for both fixed and flexible installations, offering versatility in system design. Its robust construction and high-quality materials ensure long-term reliability and performance.
Phoenix Contact 2302159 Shielded Round Cable Specifications:
- Packing unit: 1 pc
- GTIN: 4017918893118
- Weight per Piece (excluding packing): 380.000 g
- Custom tariff number: 85444290
- Country of origin: Hungary
- Ambient temperature (operation) - fixed: -40 °C ... 70 °C
- Ambient temperature (operation) - flexible: -10 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Maximum altitude: ≤ 2000 m
- Degree of protection: IP20 (fixed), ≥ IP54 (Installation location)
- Max. permissible operating voltage AC: 25 V
- Max. permissible operating voltage DC: 60 V
- Max. current carrying capacity per path (50 °C): 2 A
- Max. current carrying capacity per path (70°C): 1 A
- Length of cable: 2 m
- External cable diameter: 9.8 mm ±0.5 mm
- Single wire, cross section: 0.25 mm²
- Single wire, cross section [AWG]: 24
- Single wire, number of litz wires: 14
- Single wire, material: Cu uninsulated
- Wire diameter incl. insulation: 1.2 mm ±0.05 mm
- Smallest bending radius, fixed installation: 82 mm
- Smallest bending radius, movable installation: 155 mm
- Bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
- Shielding: yes
- Shielding type: Tinned copper-braided shield, approx. 85% covering
- Cable insulation resistance: ≥ 20 MΩ/km (at 20 °C)
- Cable resistance: ≤ 80 Ω/km (at 20 °C)
- Outer sheath material: Semi-rigid PVC
- Outer sheath color: gray
- Nominal operating mode: 100% operating factor
- Connection method (Field level): D-SUB pin strip
- Number of connections (Field level): 1
- Number of positions (Field level): 25
- Torque (Field level): 0.2 Nm
- Insertion/withdrawal cycles (Field level): > 200
- Connection method (Controller level): D-SUB socket strip
- Number of connections (Controller level): 1
- Number of positions (Controller level): 25
- Torque (Controller level): 0.2 Nm
- Insertion/withdrawal cycles (Controller level): > 200
- Flame resistance: UL VW-1, CSA FT-1
- Resistance to oil: against occasional splashes
- Gasoline resistance: against occasional splashes
- Connection in acc. with standard: CUL
- Designation: Air clearances and creepage distances
- Standards/regulations: DIN EN 50178
- Rated insulation voltage: 125 V
- Rated surge voltage: 1.2 kV
- Insulation: Functional insulation
- Pollution degree: 2
- Overvoltage category: II
- Color code (D-SUB25 (1)): white
- Color code (D-SUB25 (2)): brown
- Color code (D-SUB25 (3)): green
- Color code (D-SUB25 (4)): yellow
- Color code (D-SUB25 (5)): gray
- Color code (D-SUB25 (6)): pink
- Color code (D-SUB25 (7)): blue
- Color code (D-SUB25 (8)): red
- Color code (D-SUB25 (9)): black
- Color code (D-SUB25 (10)): violet
- Color code (D-SUB25 (11)): gray-pink
- Color code (D-SUB25 (12)): red-blue
- Color code (D-SUB25 (13)): white-green
- Color code (D-SUB25 (14)): brown-green
- Color code (D-SUB25 (15)): white-yellow
- Color code (D-SUB25 (16)): yellow-brown
- Color code (D-SUB25 (17)): white-gray
- Color code (D-SUB25 (18)): gray-brown
- Color code (D-SUB25 (19)): white-pink
- Color code (D-SUB25 (20)): pink-brown
- Color code (D-SUB25 (21)): white-blue
- Color code (D-SUB25 (22)): brown-blue
- Color code (D-SUB25 (23)): white-red
- Color code (D-SUB25 (24)): brown-red
- Color code (D-SUB25 (25)): white-black
- China RoHS: Environmentally Friendly Use Period = 50
