Phoenix Contact HCSTAD07BWSELAL Panel Mount Base D7

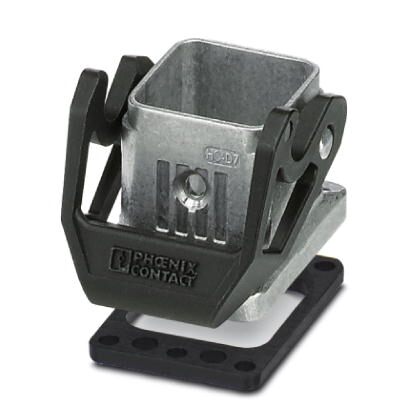

The PHOENIX CONTACT HC-STA-D07-BWS-EL-AL is a robust panel mounting base designed for secure and reliable connections in industrial environments. Constructed from die-cast aluminum with salt water resistance, it provides excellent protection against harsh conditions. The base features a single locking latch for secure attachment and is compatible with a range of contact inserts, including HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, and Q07, Q12. Its IP54/IP65 rating ensures protection against dust and water ingress, making it suitable for a wide variety of applications.
Phoenix Contact HCSTAD07BWSELAL Panel Mount Base D7 Specifications:
- Packing unit: 1 STK
- Weight per Piece (excluding packing): 20.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 24 mm
- Width: 38 mm
- Length: 28 mm
- Length of the assembly cutout: 21.5 mm
- Width of the assembly cutout: 21.5 mm
- Degree of protection of housing (IP): IP54, IP65 (with sealing screw)
- Ambient temperature (operation): -40 °C ... 125 °C
- Note: for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12
- Size: D7
- Housing type: Panel mounting base
- Locking type: With single locking latch
- Screw connection: none
- Housing material: Die-cast aluminum, salt water resistant
- Housing surface material: Uncoated
- eCl@ss 5.1: 27269202
- eCl@ss 8.0: 27440202
- eCl@ss 9.0: 27440202
- ETIM 5.0: EC000437
Buy the HC-STA-D07-BWS-EL-AL PHOENIX CONTACT Panel Mount Base D7 | myMectronic
Purchase the PHOENIX CONTACT HC-STA-D07-BWS-EL-AL panel mount base securely and efficiently online.
Buy Now
