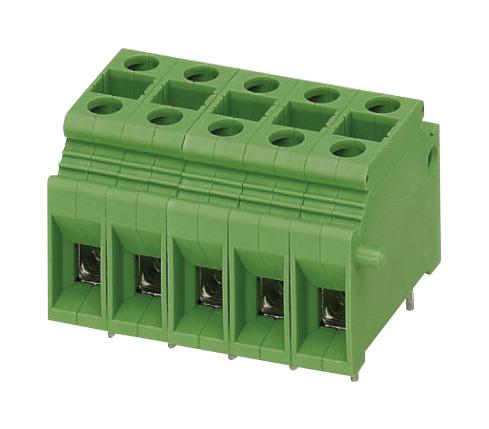

Phoenix Contact KDS10 PCB Terminal Block
The PHOENIX CONTACT KDS10 PCB terminal block is a robust solution for connecting conductors to printed circuit boards in demanding industrial environments. It offers a high current carrying capacity of up to 76A, making it suitable for power distribution and control applications. The terminal block's 10mm pitch allows for flexible layout design, and the ability to create different numbers of positions enhances its versatility. Potential distribution can be achieved through the use of bridges, and individual voltage requirements can be adjusted using RZ pitch spacers. It can also be used as a feed-through terminal block, further expanding its application possibilities.
Phoenix Contact KDS10 PCB Terminal Block Specifications:
- Nominal current: 76 A
- Nominal voltage: 320 V
- Pitch: 10 mm
- Number of positions: 1
- Connection method: Screw connection
- Mounting: Wave soldering
- Conductor/PCB connection direction: 0 °
- Color: green
- Packing unit: 1 pc
- Weight per Piece: 17.06 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length: 36.8 mm
- Constructional height: 29 mm
- Length of the solder pin: 4.3 mm
- Pin dimensions: 1 x 0,9 mm
- Hole diameter: 1.4 mm
- Range of articles: KDS10
- Insulating material group: I
- Rated surge voltage (III/3): 4 kV
- Rated surge voltage (III/2): 4 kV
- Rated surge voltage (II/2): 4 kV
- Rated voltage (III/3): 250 V
- Rated voltage (III/2): 320 V
- Rated voltage (II/2): 630 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 10 mm²
- Maximum load current: 76 A (with 16 mm² conductor cross section)
- Insulating material: PA
- Solder pin surface: Sn
- Flammability rating according to UL 94: V0
- Internal cylindrical gage: B6
- Stripping length: 12 mm
- Screw thread: M4
- Tightening torque, min: 1.2 Nm
- Tightening torque max: 1.5 Nm
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 16 mm²
- Conductor cross section flexible min.: 0.5 mm²
- Conductor cross section flexible max.: 10 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 10 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 10 mm²
- Conductor cross section AWG min.: 20
- Conductor cross section AWG max.: 6
- 2 conductors with same cross section, solid min.: 0.5 mm²
- 2 conductors with same cross section, solid max.: 4 mm²
- 2 conductors with same cross section, stranded min.: 0.5 mm²
- 2 conductors with same cross section, stranded max.: 4 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 6 mm²
