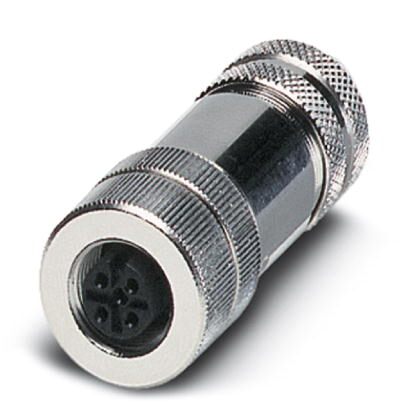

Phoenix Contact SACCM12FS4CONPG7SH M12 Connector, 4 Position
The PHOENIX CONTACT SACC-M12FS-4CON-PG 7-SH is a 4-position, shielded M12 circular connector suitable for a wide range of industrial applications. Its A-coding ensures compatibility with standard M12 systems. The connector's robust construction, featuring a zinc die-cast nickel-plated body and knurl, provides excellent protection against environmental factors. The screw connection offers a reliable and secure termination method for various conductor sizes, while the Pg7 cable gland facilitates easy and organized cable management. This connector is ideal for applications requiring reliable data transmission and power delivery in harsh industrial settings, such as factory automation, robotics, and process control systems.
Phoenix Contact SACCM12FS4CONPG7SH M12 Connector, 4 Position Specifications:
- External cable diameter: 4 mm ... 6 mm
- Stripping length of the sheath: 35 mm
- Stripping length of the individual wire: 5 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Degree of protection: IP67
- Rated current at 40°C: 4 A
- Rated voltage: 60 V DC, 48 V AC
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Pollution degree: 3
- Connection method: Screw connection
- Conductor cross section: 0.25 mm² ... 0.75 mm²
- Conductor cross section AWG: 24 ... 18
- Insertion/withdrawal cycles: ≥ 100
- Torque (M12 knurl): 0.4 Nm
- Torque (Screw terminal blocks): 0.2 Nm
- Torque (Pressure nut with coupling sleeve): 0.8 Nm ... 1 Nm
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA
- Material of grip body: Zinc die-cast, nickel-plated
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- eCl@ss 4.0: 27140815
- eCl@ss 4.1: 27140815
- eCl@ss 5.0: 27143423
- eCl@ss 5.1: 27143423
- eCl@ss 6.0: 27143423
- eCl@ss 7.0: 27449001
- eCl@ss 8.0: 27440104
- ETIM 2.0: EC001121
- ETIM 3.0: EC002062
- ETIM 4.0: EC002062
- ETIM 5.0: EC002062
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
