Phoenix Contact LPCH634ST762 PCB Hybrid Connector
The PCB hybrid connector LPCH 6/ 3+4-ST-7,62 is a reliable printed-circuit board connector designed for power and signal transmission in industrial applications. It features a push-in spring connection method for quick, tool-free installation, and offers a rated current of 41 A with a voltage rating of 1000 V. Crafted from durable tin-plated Cu alloy, it supports various conductor sizes including solid and flexible wires up to 10 mm². Its compact design includes a pitch of 7.62 mm, and it is suitable for PCB mounting, ensuring long-term stable contact performance in demanding environments.
Phoenix Contact LPCH634ST762 PCB Hybrid Connector Specifications:
- Pitch: 7.62 mm
- Number of positions: 7
- Rated current: 41 A
- Rated voltage: 1000 V
- Surge voltage: 8 kV
- Connection method: Push-in spring connection
- Conductor cross section solid: 0.75 mm² ... 10 mm²
- Flexible: 0.75 mm² ... 6 mm²
- AWG/Kemil: 18 ... 8
- Material: Tin-plated Cu alloy, PAGF insulating material
- Dimensions: Length 48 mm, Width 32.68 mm, Height 35.65 mm
- Flammability rating: UL 94 V-0
- Rated insulation voltage: 1000 V
- Creepage distance: 5 mm to 10 mm
- Mechanical and climatic durability: IEC standards compliance
- Operating temperature: -40°C to 100°C
- Approvals: cULus Recognized, Ex approvals

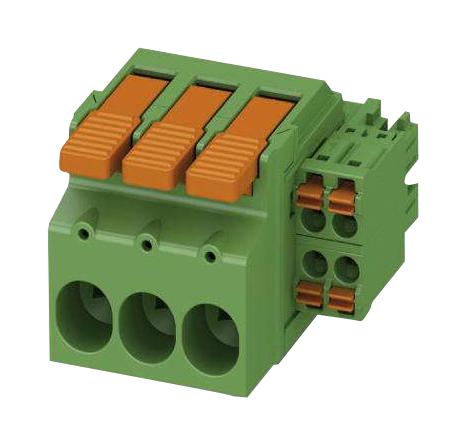

Buy the Phoenix Contact LPCH 6/ 3+4-ST-7,62 – Reliable PCB Hybrid Connector for Industrial Applications
Purchase the Phoenix Contact PCB Hybrid Connector LPCH 6/ 3+4-ST-7,62 now to ensure reliable power and signal connections in industrial environments. Designed with tool-free push-in spring connection, it simplifies installation and maintenance while delivering a stable contact force for long-term performance. Its compact dimensions, rated for 41 A current at 1000 V, make it ideal for demanding PCB applications. Order online for fast delivery and enjoy a high-quality component tested for durability, safety, and certified for industrial use.
Get Phoenix Contact LPCH 6/ 3+4-ST-7,62 today—built for precision, quick installation, and long-lasting durability in industrial PCB systems.
Frequently Asked Questions
Where can I buy Phoenix Contact LPCH634ST762?
You can click on the BUY or RFQ button to purchase LPCH634ST762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPCH634ST762?
You can download the LPCH634ST762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPCH634ST762?
Phoenix Contact
