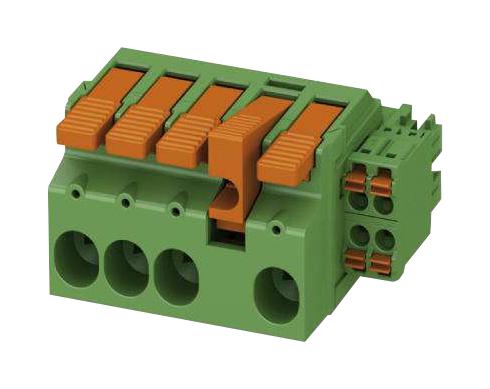

Phoenix Contact LPCH654STL5762 PCB Hybrid Connector
The PCB hybrid connector offers reliable electrical connectivity with a push-in spring connection method, rated for 41A and 1000V. Designed with nine positions and a pitch of 7.62mm, it features a secure locking latch at position 5 for stability. The connector is made from tin-plated copper alloy with flame-retardant PAGF housing, ensuring compliance with RoHS and UL 94 V-0 standards. Suitable for industrial automation and control applications, it supports a wide range of conductor sizes for flexible wiring. Dimensions include 48mm length, 55.54mm width, and 35.65mm height, making it compact yet robust for demanding environments.
Phoenix Contact LPCH654STL5762 PCB Hybrid Connector Specifications:
- Rated current: 41A at 1000V
- Number of positions: 9
- Pitch: 7.62 mm
- Connection method: Push-in spring connection
- Conductor cross section: 0.75 mm² to 10 mm² (solid), 0.75 mm² to 6 mm² (flexible)
- Housing material: Flame-retardant PAGF, UL 94 V-0
- Contact material: Tin-plated Cu alloy
- Dimensions: 48 mm length, 55.54 mm width, 35.65 mm height
- Inserting length: 18 mm
- Rated insulation voltage: 1000 V
- Min. clearance: 8mm, Creepage: 10mm
- Temperature range: -40°C to 100°C
- Tested for durability: 25 cycles, with insertion/withdrawal forces approx. 7N/4N
- Compatible with multiple conductor sizes and provides reliable long-term contact stability
Buy the Phoenix Contact LPCH654STL5762 – Reliable PCB Hybrid Connector for Industrial Applications
Order the Phoenix Contact PCB Hybrid Connector today for reliable, high-current connections in industrial automation. With push-in spring technology, secure locking, and a compact design, this connector ensures stable long-term performance. Suitable for various conductor sizes and rated for 41A at 1000V, it features flame-retardant housing materials, comprehensive testing, and compliance with RoHS and UL standards. Ideal for PCB applications requiring durable and flexible wiring options. Buy online now for fast delivery and professional-grade connectivity solutions.
Get Phoenix Contact LPCH654STL5762 today—designed for high current and secure connections in industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact LPCH654STL5762?
You can click on the BUY or RFQ button to purchase LPCH654STL5762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPCH654STL5762?
You can download the LPCH654STL5762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPCH654STL5762?
Phoenix Contact
