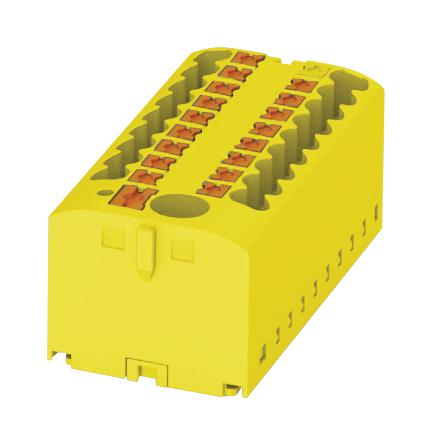

Phoenix Contact PTFIX66X25YE Industrial Terminal Block
The distribution block PTFIX 6/6X2.5 YE is a reliable, compact terminal block designed for industrial electrical wiring. It features push-in connection technology for tool-free, quick conductor assembly, reduce wiring time by up to 80%. Certified for UL, CSA, and DIN EN 45545-2 standards, it supports a maximum current of 24A and voltage of 500V. Its yellow insulating housing made of PA ensures safety and durability. Easy to snap onto DIN rails or mount directly, this versatile device optimizes space and simplifies complex wiring systems in industrial automation.
Phoenix Contact PTFIX66X25YE Industrial Terminal Block Specifications:
- Color: yellow
- Insulating material: PA
- Flammability rating: UL 94 VO
- Rated surge voltage: 6 kV
- Maximum power dissipation: 1.31 W
- Maximum load current: 24A
- Nominal current: 24A
- Nominal voltage: 500 V
- Dimensions: Width 25.2 mm, Length 28.2 mm, Height 21.2 mm
- Connection method: Push-in connection
- Number of connections: 7
- Conductor cross section solid: 0.14 mm² - 4 mm²
- Conductor cross section AWG: 26 - 12
- Stripping length: 8 mm - 10 mm
- Environmental compliance: UL Recognized, CSA, DIN EN 45545-2 R22-R26
- Certification: UL, cUL, CSA recognized
Buy the Phoenix Contact PTFIX6/6X2.5 YE – Reliable Industrial Terminal Block for Industrial Applications
Purchase the Phoenix Contact PTFIX 6/6X2.5 YE terminal block online today. Designed for quick, tool-free wiring with push-in technology, it ensures fast installation, superior safety, and long-lasting performance in demanding industrial environments. Its compact design saves space on DIN rails and offers versatile mounting options. Certified for UL, CSA, and fire safety standards, this device guarantees reliable operation, reduces wiring time significantly, and simplifies complex control panel wiring. Order now to optimize your industrial automation projects.
Buy Phoenix Contact PTFIX 6/6X2.5 YE now and experience unmatched reliability and performance in electrical wiring and industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX66X25YE?
You can click on the BUY or RFQ button to purchase PTFIX66X25YE from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX66X25YE?
You can download the PTFIX66X25YE datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX66X25YE?
Phoenix Contact
