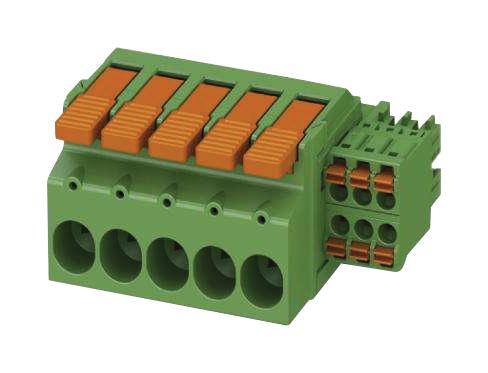

Phoenix Contact LPCH656ST762 PCB Hybrid Connector
The PCB hybrid connector LPCH 6/ 5+6-ST-7,62 is a reliable printed-circuit board connector featuring a push-in spring connection for quick, tool-free wiring. It handles a rated current of 4A and a voltage of 1000V, suitable for compact electronic applications. Designed with tin-plated copper contacts and PAGF insulators, it ensures durability and resistance to environmental stress. The connector supports solid and flexible conductors from 0.75mm² to 10mm², making it versatile for various wiring needs. The product offers high electrical stability through rigorous testing, including temperature cycles and mechanical endurance, and complies with safety standards like UL 94 V-0 and IEC requirements, making it ideal for industrial control and automation systems.
Phoenix Contact LPCH656ST762 PCB Hybrid Connector Specifications:
- Rated current: 4A
- Rated voltage: 1000V
- Contact material: Cu alloy, Tin-plated
- Insulating material: PAGF, flammability rating UL 94 V-0
- Number of positions: 11
- Pitch: 7.62 mm
- Conductor cross section solid: 0.75 mm² to 10 mm²
- Flexible conductor cross section: 0.75 mm² to 6 mm²
- Dimension: Length 48mm, Width 51.73mm, Height 35.65mm
- Temperature range: -40°C to 100°C (operation), -5°C to 70°C (storage/transport)
- Pull-out force: >30 N for 0.75 mm² solid, >80 N for 6 mm² flexible
- Flammability rating: UL 94 V-0
- Certification: cULus Recognized
- Ingress protection: IP10
- Standards: IEC 60999-1, IEC 60512, IEC 60664-1
Buy the Buy Phoenix Contact PCB Hybrid Connector Part Number LPCH656ST762 Online
Purchase the Phoenix Contact PCB hybrid connector LPCH 6/ 5+6-ST-7,62 online today to ensure seamless, efficient wiring with tool-free push-in connection. Designed for reliable performance, it supports a range of conductors from 0.75mm² to 10mm², offering high electrical stability through rigorous testing. Its durable materials and compliance with safety standards like UL 94 V-0 make it ideal for industrial automation, control systems, and electronic applications requiring secure, long-lasting connections. Order now for fast delivery and expert support.
Get Phoenix Contact LPCH 6/ 5+6-ST-7,62 today—built for precision and long-lasting durability, perfect for reliable electronic connections in industrial environments.
