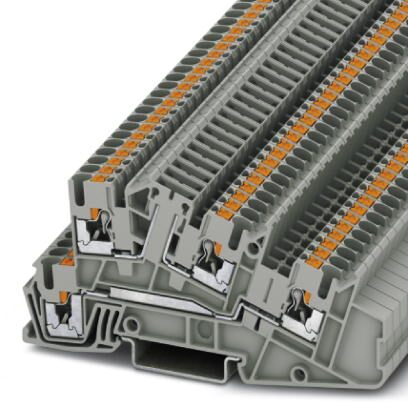

Phoenix Contact 3213961 Multi-Level Terminal Block
This is a Phoenix Contact multi-level terminal block designed for secure electrical connections. It features push-in connection technology, supports a maximum current of 20A and a voltage of 300V. The terminal block has three levels, suitable for wire sizes ranging from #26 to #12 AWG, and comes in gray color.
Phoenix Contact 3213961 Multi-Level Terminal Block Specifications:
- Number of levels: 3
- Number of connections: 4
- Potentials: 2
- Maximum load current: 20A
- Rated surge voltage: 6kV
- Rated voltage: 300V (phase conductor/phase conductor), 250V (phase conductor/PE)
- Connection method: Push-in connection
- Conductor cross section: solid min. 0.14 mm?, max. 4 mm?
- Conductor cross section AWG: min. 26, max. 12
- Stripping length: 8mm... 10 mm
- Color: Gray
- Insulating material: PA
- Flammability rating: UL 94 V-0
Buy the Phoenix Contact Series PTI 2,5-L/TG: Secure Multi-Level Terminal Block 3213961
Purchase the Phoenix Contact PTI 2,5-L/TG terminal block online today to access a reliable multi-level solution with push-in technology, supporting 20A and 300V for versatile wiring needs. Designed for industrial environments, it features three levels, secure connections, and supports wire sizes from #26 to #12 AWG. Its gray color complements control panels and setup configurations, ensuring safe and efficient installations. Buy now to experience high-quality, durable electrical connectivity for your projects.
Order your Phoenix Contact Series PTI 2,5-L/TG terminal block today and ensure reliable, safe electrical connections in your industrial system.
Frequently Asked Questions
Where can I buy Phoenix Contact 3213961?
You can click on the BUY or RFQ button to purchase 3213961 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3213961?
You can download the 3213961 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3213961?
Phoenix Contact
