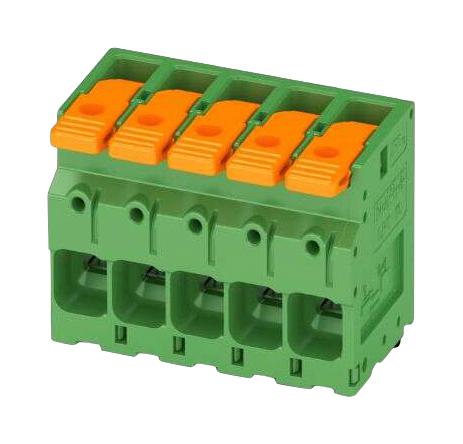

Phoenix Contact LPT166100ZB PCB terminal block
The PCB terminal block LPT 16/ 6-10,0-ZB offers reliable and efficient connections for industrial wiring. Featuring a lever push-in connection, it supports conductor cross sections from 0.75 mm² to 16 mm² for solid and stranded wires, ensuring long-term contact stability. With a pitch of 10 mm and a rated voltage of 1000 V, it is suitable for wave soldering mounting. The terminal boasts a green housing, tin-plated Cu alloy contacts, and a maximum current of 76 A. Its intuitive operation and compliance with safety standards make it ideal for industrial control panels and wiring harnesses.
Phoenix Contact LPT166100ZB PCB terminal block Specifications:
- Pitch: 10 mm
- Number of positions: 6
- Mounting: Wave soldering
- Connection method: Lever push-in
- Conductor cross section: 0.75 mm² - 16 mm² (solid and stranded), 0.75 mm² - 16 mm² with ferrule, 0.75 mm² - 25 mm² flexible
- Rated voltage: 1000 V
- Rated current: 76 A
- Housing color: Green
- Material: PA (housing), Cu alloy (contacts)
- Surface: Tin-plated
- Dimensions: Length 32 mm
- Solder pin length: 3.6 mm
- Clamping width: 18-20 mm stripped length
- Ambient temperature (operation): -5°C to 105°C
- Creepage distance: 8 mm - 12.5 mm
- Clearances: 8 mm - 5.5 mm
- Compliance: UL 94 V-0, IEC 60068-2-82, RoHS, WEEE
Buy the Phoenix Contact LPT 16/ 6-10,0-ZB – Reliable PCB Terminal Block for Industrial Applications
Order the reliable PCB terminal block with lever push-in connection today. This 6-position compact unit with a 10 mm pitch supports a rated voltage of 1000 V and a current of 76 A. Designed for wave soldering mounting, it features a green housing, tin-plated contacts, and supports conductor cross sections from 0.75 mm² to 16 mm². Its clear lever positions provide quick feedback, making installation efficient. Perfect for industrial control panels, wiring harnesses, and automation systems, ensuring long-term stable connections.
Buy Phoenix Contact LPT 16/ 6-10,0-ZB now and experience unmatched reliability and ease of installation for your industrial wiring projects.
Frequently Asked Questions
Where can I buy Phoenix Contact LPT166100ZB?
You can click on the BUY or RFQ button to purchase LPT166100ZB from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPT166100ZB?
You can download the LPT166100ZB datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPT166100ZB?
Phoenix Contact
