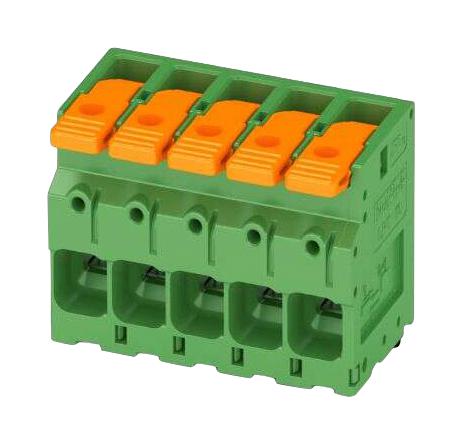

Phoenix Contact LPT167100ZB PCB Terminal Block
The PCB terminal block LPT 16/ 7-10,0-ZB features a lever push-in connection method for efficient wiring and reliable contact stability. Designed for wave soldering, this green insulat ing terminal block supports a nominal current of 76 A and a rated voltage of 1000 V. It offers seven positions with a pitch of 10 mm, zigzag pinning layout, and a conductor cross section capacity of 0.75 mm² to 16 mm². Its durable tin-plated Cu alloy contacts ensure long-term stability, making it suitable for various industrial applications requiring secure and easy-to-install connections.
Phoenix Contact LPT167100ZB PCB Terminal Block Specifications:
- Material: Cu alloy with tin plating
- Housing color: green (6021)
- Dimensions: Length 32 mm, Width data not specified, Height data not specified, Solder pin length 18-20 mm
- Pitch: 10 mm
- Number of positions: 7
- Mounting: Wave soldering
- Connection capacity: 0.75 mm² to 16 mm² solid and stranded wire, up to 25 mm² flexible wire
- Rated current: 76 A
- Rated voltage: 1000 V
- Rated surge voltage: 8 mm clearance, 12.5 mm creepage
- Operating temperature: -5°C to 105°C
- Flammability: UL 94 V-0
- Insulation material: PA (Polyamide)
- Contact material: Tin-plated Cu alloy
- Wire stripping length: 18-20 mm
Buy the Buy Phoenix Contact PCB Terminal Block Part Number LPT167100ZB Online
Enhance your wiring projects with the Phoenix Contact PCB terminal block offering seven positions, 10 mm pitch, and a current capacity of 76 A. Its lever push-in connection enables fast wiring and easy removal, saving time during installation and maintenance. Suitable for wave soldering, this component features tin-plated Cu alloy contacts for durability and corrosion resistance. Designed for industrial applications, it supports wire cross sections from 0.75 mm² to 16 mm² solid and stranded, with flexible options up to 25 mm². Its robust design and high voltage rating ensure long-lasting, secure electrical connections in demanding environments.
Order your Phoenix Contact LPT 16/ 7-10,0-ZB PCB terminal block today and ensure reliable, easy-to-install connections with high current capacity and secure contact stability.
Frequently Asked Questions
Where can I buy Phoenix Contact LPT167100ZB?
You can click on the BUY or RFQ button to purchase LPT167100ZB from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPT167100ZB?
You can download the LPT167100ZB datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPT167100ZB?
Phoenix Contact
