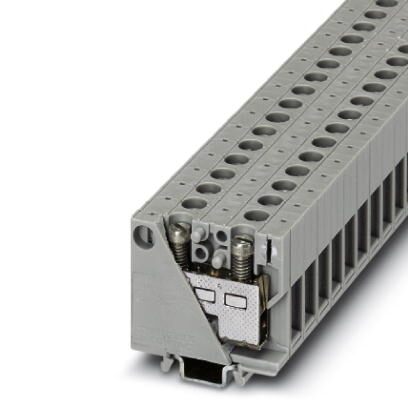

Phoenix Contact MBK10 Mini Feed-Through Terminal Block
The PHOENIX CONTACT MBK 10 mini feed-through terminal block offers a compact and efficient solution for connecting wires in various industrial applications. Its space-saving design allows for dense panel layouts, while the standardized plug-in bridges simplify potential distribution. The screw connection ensures a reliable and secure connection for wires ranging from 0.5 to 10 mm² (20-8 AWG). This terminal block is ideal for control cabinets, automation systems, and other electrical installations where compact size and efficient wiring are essential.
Phoenix Contact MBK10 Mini Feed-Through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 61 A
- Nominal voltage UN: 500 V
- Open side panel: No
- Width: 7.5 mm
- Length: 33 mm
- Height NS 35/7,5: 32.5 mm
- Connection method: Screw connection
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 10 mm²
- Conductor cross section AWG min.: 20
- Conductor cross section AWG max.: 8
- Conductor cross section flexible min.: 0.5 mm²
- Conductor cross section flexible max.: 6 mm²
- Min. AWG conductor cross section, flexible: 20
- Max. AWG conductor cross section, flexible: 10
- eCl@ss 4.0: 27141123
- eCl@ss 4.1: 27141123
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
- CSA mm²/AWG/kcmil: 26-8
- CSA Nominal current IN: 55 A
- CSA Nominal voltage UN: 300 V
- UL Recognized mm²/AWG/kcmil: 26-8
- UL Recognized Nominal current IN: 50 A
- UL Recognized Nominal voltage UN: 600 V
- cUL Recognized mm²/AWG/kcmil: 26-8
- cUL Recognized Nominal current IN: 50 A
- cUL Recognized Nominal voltage UN: 600 V
- Country of origin: Germany
- Packing unit: 1 pc
- Custom tariff number: 85369010
- Weight per Piece (excluding packing): 14.24 g
Buy the MBK 10 PHOENIX CONTACT Mini Feed-Through Terminal Block | myMectronic
Securely purchase the PHOENIX CONTACT MBK 10 Mini Feed-Through Terminal Block online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact MBK10?
You can click on the BUY or RFQ button to purchase MBK10 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MBK10?
You can download the MBK10 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MBK10?
Phoenix Contact
