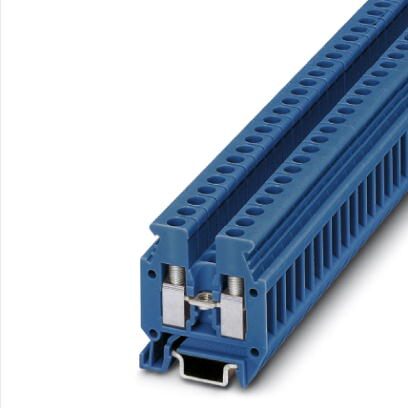

Phoenix Contact MBK3EZBU Mini Feed-Through Terminal Block
The PHOENIX CONTACT MBK 3/E-Z BU mini feed-through terminal block offers a compact and efficient solution for connecting wires in various industrial applications. Its space-saving design allows for dense panel layouts, while the mounting option on a 15 mm DIN rail provides flexibility in installation. The screw connection ensures secure and reliable connections, and the clear marking of all terminal points simplifies identification and maintenance. This terminal block is ideal for applications requiring organized and efficient wire management, such as control cabinets, automation systems, and power distribution panels.
Phoenix Contact MBK3EZBU Mini Feed-Through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 2.5 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V2
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 32 A (with 4 mm² conductor cross section)
- Nominal current IN: 24 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 4.86 g
- Custom tariff number: 85369010
- Country of origin: India
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Stripping length: 8 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- eCl@ss 4.0: 27141123
- eCl@ss 4.1: 27141123
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
