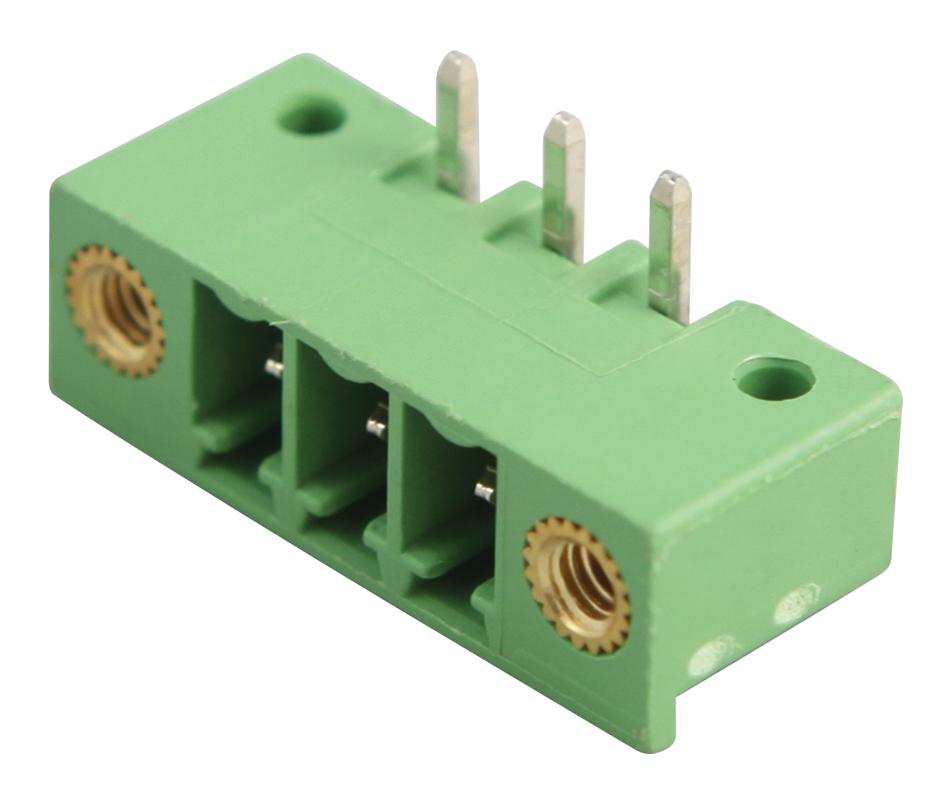

Phoenix Contact MC153GF381LR PCB Connector
The MC 1.5/3-GF-3.81-LR is a 3-position printed-circuit board connector designed for reliable, low-voltage applications. Made from flame-retardant PBT and featuring a green color, it supports a rated voltage of 160V and a nominal current of 8A. The connector has a pitch of 3.81mm, a contact surface tin-plated for good conductivity, and is suitable for wave soldering mounting. Its dimensions include a length of 9.2mm, a hole diameter of 1.2mm, and a pin size of 0.8×0.8mm, making it ideal for precise PCB connections in industrial electronics.
Phoenix Contact MC153GF381LR PCB Connector Specifications:
- Number of positions: 3
- Pitch: 3.81 mm
- Rated voltage: 160V (III/3, III/2), 250V (II/2)
- Nominal current: 8A
- Contact surface: Tin
- Insulating material: PBT
- Flammability rating: UL 94 V-0
- Dimensions: Length 9.2mm, Hole diameter 1.2mm, Pin size 0.8 x 0.8 mm, Length of solder pin 3.4mm
- Color: Green
- Mounting: Wave soldering support
- Temperature rating: suitable for industrial environments
Buy the Phoenix Contact MC 1.5/3-GF-3.81-LR – Reliable PCB Connector for Industrial Applications
Purchase the Phoenix Contact PCB Connector designed with 3 positions, a 3.81mm pitch, and a current capacity of 8A. Made from flame-retardant PBT with a tin-plated contact surface, it ensures reliable electrical connections. This connector is suitable for wave soldering and provides precise mounting options. Its dimensions include a length of 9.2mm and a hole diameter of 1.2mm, making it ideal for industrial electronic assemblies requiring secure, durable, and high-quality PCB connections. Order online now for quick delivery.
Get Phoenix Contact MC 1.5/3-GF-3.81-LR today—built for precise electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy Phoenix Contact MC153GF381LR?
You can click on the BUY or RFQ button to purchase MC153GF381LR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MC153GF381LR?
You can download the MC153GF381LR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MC153GF381LR?
Phoenix Contact
