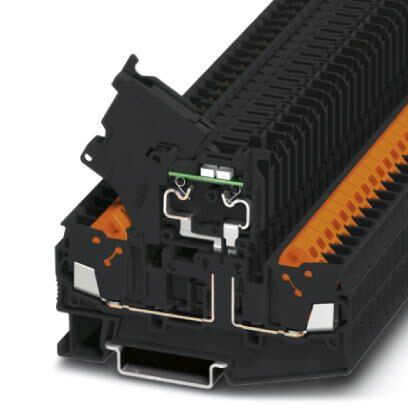

Phoenix Contact 3050293 Fuse Holder
The Phoenix Lever Fuse Block QTC 2.5-HESI (5x20) is a high-quality fuse holder designed for reliable electrical protection. It features a lever mechanism for easy fuse replacement and ensures secure connection in electrical circuits, suitable for railway industry and mechanical engineering applications. Made of insulating PA material with UL 94 V-0 flammability rating, it supports 2.5 mm² conductor cross sections, with a compact width of 6.2 mm, length of 82.5 mm, and height adaptable to NS 35/7.5 or 35/15 standards. Rated for AC currents up to 6.3 A and voltage up to 500 V, it is recognized by CSA, UL, and other approval bodies, ensuring safety and compliance.
Phoenix Contact 3050293 Fuse Holder Specifications:
- Material: PA (Polyamide)
- Flammability Rating: UL 94 V-0
- Number of levels: 1
- Connections: 2
- Nominal cross section: 2.5 mm²
- Color: Black
- Rated surge voltage: 6 kV
- Maximum power dissipation: 1.6 W
- Maximum load current: 6.3 A
- Nominal current: 6.3 A
- Nominal voltage: 500 V
- Height NS 35/7.5: 64.9 mm, NS 35/15: 72.4 mm
- Width: 6.2 mm
- Length: 82.5 mm
- Maximum wire diameter including insulation: 3.8 mm
- Conductor cross section - solid/min: 0.5 mm²
- Conductor cross section - flexible/max: 2.5 mm²
- Connection method: Quick connection
- Standards: IEC 60947-7-3, CSA, UL Recognized
- Approvals: CSA, UL, KEMA-KEUR, cUL, GL, BV, DNV, ABS, NK, IECEE CB Scheme, EAC, LR
- Certifications: Recognized/Certified for industrial and railway applications
- Country of origin: China
Buy the Buy Phoenix Contact Fuse Holder Part Number 3050293 Online
Order the Phoenix Contact fuse holder 3050293 online today and experience reliable electrical protection with easy fuse replacement and secure, compact connections. Crafted from durable insulating material, it meets industry standards like UL and IEC, ensuring safety and long-lasting performance. Perfect for railway, mechanical engineering, and plant engineering applications, this robust fuse terminal block provides efficient circuit protection in a compact design. Make your purchase now for dependable electrical management and seamless integration into your systems.
Get Phoenix Contact 3050293 fuse terminal block today—designed for secure connections and easy fuse replacement in electrical circuits.
Frequently Asked Questions
Where can I buy Phoenix Contact 3050293?
You can click on the BUY or RFQ button to purchase 3050293 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3050293?
You can download the 3050293 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3050293?
Phoenix Contact
