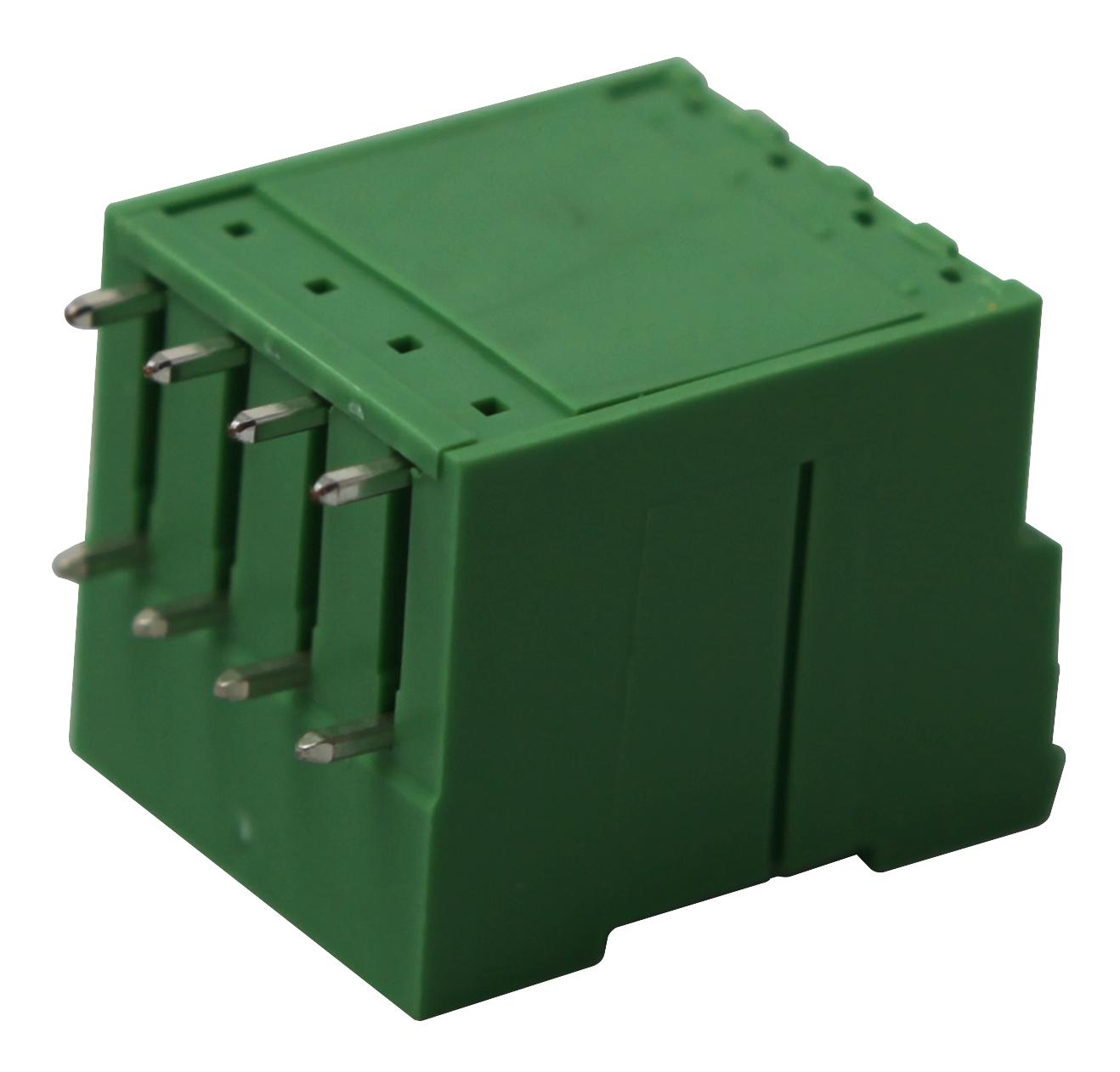

Phoenix Contact MDSTB254G1508 Base strip connector
The MDSTB 2,5/4-G1-5,08 base strip is a green, 4-position connector made from PA with a pitch of 5.08 mm and a length of 22 mm. It features a rated current of 10 A and a rated voltage of 320 V (III/2), conforming to EN-VDE standards. Designed for wave soldering and compatible with MVSTB or FKCV plug components, it includes tin contact surfaces, a hole diameter of 1.4 mm, and a solder pin length of 3.5 mm. Its construction height is 29 mm, making it suitable for industrial electronic applications.
Phoenix Contact MDSTB254G1508 Base strip connector Specifications:
- Number of positions: 4
- Color: green
- Rated current: 10 A
- Rated voltage: 320 V (III/2)
- Pitch: 5.08 mm
- Dimensions: Length 22mm, Construction height 29mm, Dimension a 15.24mm
- Hole diameter: 1.4mm
- Solder pin length: 3.5mm
- Pin dimensions: 1x 1mm
- Insulating material: PA
- Flammability rating: UL 94 vo
- Connection standards: EN-VDE
- Material surface: Tin
- Mounting: Wave soldering
- Max load per position: 10 A
Buy the Buy Phoenix Contact Base Strip MDSTB 2,5/ 4-G1-5,08 Online
Purchase the Phoenix Contact MDSTB 2,5/ 4-G1-5,08 base strip online today and ensure robust, reliable connections for your industrial or electronic projects. Engineered for high performance, it offers a 4-position configuration with a 5.08 mm pitch, rated for 10 A and 320 V, complying with industry standards. Its precise dimensions and high-quality materials guarantee ease of installation and long-term stability, making it an essential component for wave soldering and connector assemblies. Get professional-grade quality with quick delivery directly from our online store.
Order your Phoenix Contact SeriesMDSTB 2,5/ 4-G1-5,08 today and give your electronic assemblies the reliable connection they need.
