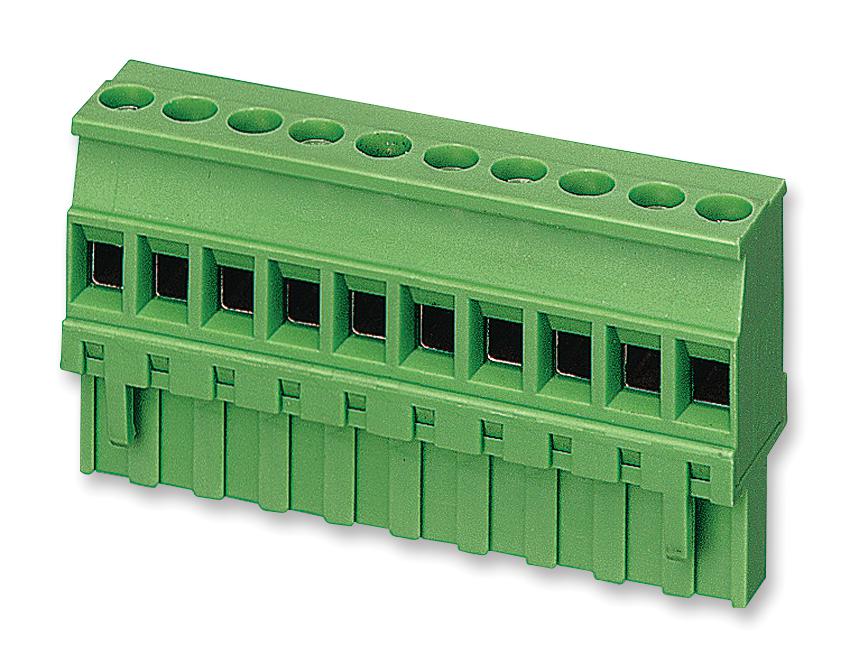

Phoenix Contact MVSTBR2512ST PCB connector
This printed-circuit board connector features a 12-position female connection with a 5 mm pitch, rated for 12 A and 320 V. It utilizes screw connection with tension sleeve, ensuring secure contact. The green plastic housing and tin contact surface offer reliable electrical performance. Designed for wave soldering, it conforms to VDE, UL 94 V-0 standards, and supports flexible conductor cross-sections from 0.2 mm² to 2.5 mm². Suitable for applications requiring robust, easy-to-mount PCB connections with high current capacity and safe insulation.
Phoenix Contact MVSTBR2512ST PCB connector Specifications:
- Number of positions: 12
- Pitch: 5 mm
- Rated current: 12 A
- Rated voltage: 320 V
- Connection method: Screw connection with tension sleeve
- Housing material: PA, flammability rating UL 94 V-0
- Contact surface: Tin
- Mounting: Wave soldering
- Conductor cross section: 0.2 mm² to 2.5 mm² solid or flexible
- Screw thread: M3, Tightening torque: 0.5 to 0.6 Nm
- Contact conductor AWG: 24 to 12
- Color: Green
Buy the Phoenix Contact Series MVST Series PCB Connectors: MVSTBR 2,5/12-ST
Order the Phoenix Contact MVSTBR 2,5/12-ST PCB connector online today to enjoy efficient, secure connections in industrial electronics. This 12-position, 5 mm pitch connector is rated for 12 A and 320 V, featuring screw connection with tension sleeve for easy installation and high stability. Its robust green housing and tin contact surface ensure reliable electrical contact while conforming to UL and VDE standards. Ideal for manufacturing, maintenance, and OEM installations requiring durable, high-current PCB connections with precise spacing and alignment options.
Buy Phoenix Contact MVSTBR 2,5/12-ST now and experience unmatched reliability and performance with secure screw connections for demanding PCB applications.
Frequently Asked Questions
Where can I buy Phoenix Contact MVSTBR2512ST?
You can click on the BUY or RFQ button to purchase MVSTBR2512ST from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MVSTBR2512ST?
You can download the MVSTBR2512ST datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MVSTBR2512ST?
Phoenix Contact
