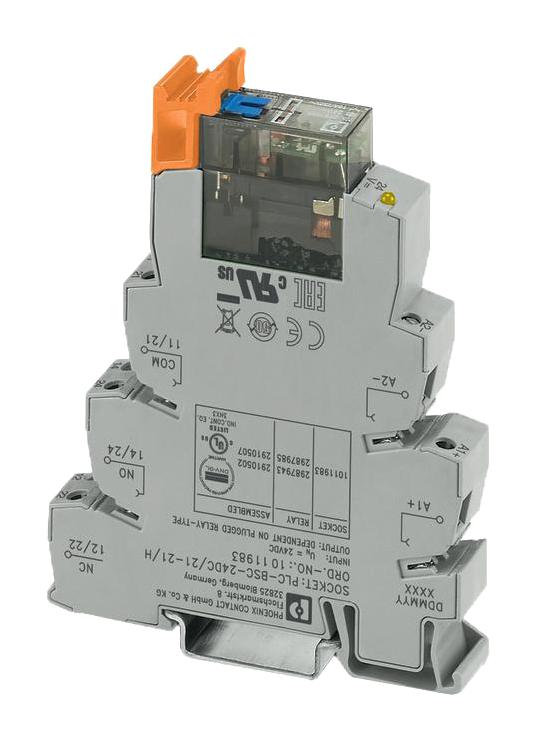

Phoenix Contact 2910502 Industrial Relay Module
The PLC-RSC-24DC/21-21/MS is a robust relay module designed for industrial automation, featuring a 2PDT contact type with AgNi contact material. It operates on 24 V DC with quick response and release times of 10 ms each, making it ideal for high-speed switching applications. Its compact dimensions (14 mm width, 80 mm height, 104 mm depth) allow easy integration into control panels. The relay supports a maximum switching voltage of 250 V AC/DC, a continuous current of 6A, and is UL, cUL recognized, meeting stringent safety standards for reliable operation in harsh environments.
Phoenix Contact 2910502 Industrial Relay Module Specifications:
- Dimensions: Width 14mm, Height 80mm, Depth 104mm
- Coil voltage: 24 V DC
- Response and release time: 10 ms each
- Contact type: 2PDT, AgNi contact material
- Maximum switching voltage: 250 V AC/DC
- Continuous current: 6A
- Relays mechanical life: 5 x 10^6 cycles
- Test voltage relay winding/contact: 4 kV AC, 50 Hz, 1 min
- Connection: Screw connection, stripping length 8mm, M3 screw thread
- Operating temperature: -20°C to 60°C
- Insulation: Safe isolation between control and contact side
- Certifications: UL Recognized, UL Listed, cUL Recognized, cUL Listed, EAC
- Mounting position: Any
- Standards: EN 50178, IEC 60947-5-1
- Overvoltage category: mM
- Flammability rating: UL 94 V-0
Buy the Phoenix Contact PLC-RSC-24DC/21-21/MS – Reliable Industrial Relay Module for Automation
Enhance your automation systems with the Phoenix Contact relay module designed for high-speed switching and dependable operation. Featuring a compact form factor, 2PDT contacts, and support for 24 V DC input, this relay offers a maximum switching voltage of 250 V AC/DC and continuous current of 6A. Recognized UL and cUL standards ensure safety and durability, making it suitable for demanding industrial environments. Easy to install with screw connection terminals and marked for clear identification, it’s the ideal choice for reliable control in manufacturing, process automation, and control panels.
Buy Phoenix Contact PLC-RSC-24DC/21-21/MS now and experience unmatched reliability and performance in automation control systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 2910502?
You can click on the BUY or RFQ button to purchase 2910502 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2910502?
You can download the 2910502 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2910502?
Phoenix Contact
