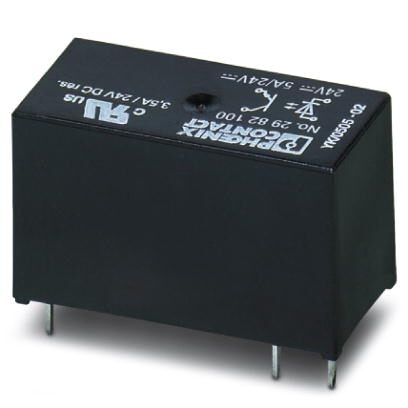

Phoenix Contact OPT24DC24DC5 Miniature Solid State Relay
The PHOENIX CONTACT OPT-24DC/24DC/5 is a miniature plug-in solid-state relay ideal for applications requiring reliable and durable switching. Its compact design and robust construction make it suitable for harsh environments, offering vibration and shock resistance, as well as RT III-proof protection against wash water. The relay features wear-free operation, zero voltage switching, and the ability to be soldered onto a PCB, making it versatile for various industrial automation and control systems. With a 24V DC input and a 3-33V DC/5A output, it provides efficient and precise power control.
Phoenix Contact OPT24DC24DC5 Miniature Solid State Relay Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4017918937492
- Weight per Piece (excluding packing): 11.740 g
- Custom tariff number: 85364190
- Country of origin: Hungary
- Width: 12.7 mm
- Height: 29 mm
- Depth: 15.7 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Degree of protection: RT III
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Input voltage range: 19.2 V DC ... 28.8 V DC
- Switching threshold "0" signal, voltage: ≤ 10 V
- Switching threshold "1" signal voltage: ≥ 16 V
- Typical input current at UN: 7 mA
- Typical response time: 20 µs
- Typical turn-off time: 400 µs
- Type of protection: Reverse polarity protection
- Protective circuit/component: Polarity protection diode
- Transmission frequency: 300 Hz
- Power dissipation for nominal condition: 0.17 W
- Output nominal voltage: 24 V DC
- Output voltage range: 3 V DC ... 33 V DC
- Limiting continuous current: 5 A
- Maximum inrush current: 15 A
- Surge voltage protection: > 33 V DC
- Voltage drop at max. limiting continuous current: ≤ 200 mV
- Output circuit: 2-wire, floating
- Test voltage input/output: 2.5 kV
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Connection in acc. with standard: CUL
- Standards and regulations: IEC 60664
- Rated insulation voltage: 100 V DC
- Insulation: Basic insulation
- Pollution degree: 2
- Overvoltage category: III
- China RoHS: Environmentally friendly use period: unlimited
- Standards/regulations: EN 50178
Buy the 2982100 PHOENIX CONTACT Miniature Solid State Relay | myMectronic
Purchase the PHOENIX CONTACT OPT-24DC/24DC/5 securely and efficiently for your industrial needs.
