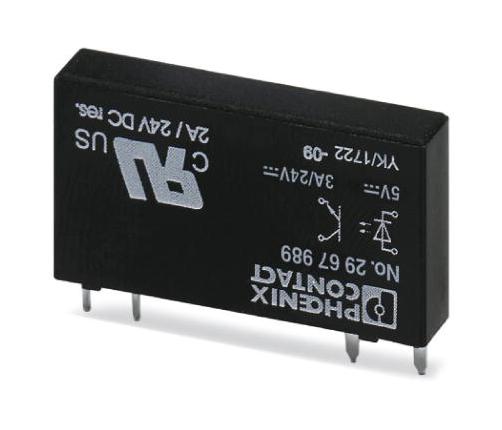

Phoenix Contact OPT5DC24DC2 Miniature Solid State Relay
The PHOENIX CONTACT OPT-5DC/24DC/2 is a miniature plug-in solid-state relay engineered for robust and reliable performance in diverse industrial applications. This relay offers a 5V DC input voltage and a 24V DC output voltage, with a maximum continuous current rating of 3A. Its compact design allows for space-saving integration into control panels and machinery. Key features include vibration and shock resistance, RT III wash protection, solderability for PCB mounting, and a fast response time. The relay is ideal for applications requiring frequent switching and high reliability, such as industrial automation, process control, and building automation systems. Its floating output circuit and reverse polarity protection enhance safety and versatility.
Phoenix Contact OPT5DC24DC2 Miniature Solid State Relay Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4017918820763
- Weight per Piece (excluding packing): 5.240 g
- Custom tariff number: 85364190
- Country of origin: Hungary
- Width: 5 mm
- Height: 28 mm
- Depth: 15 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Degree of protection: RT III (wash-proof)
- Nominal input voltage UN: 5 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Input voltage range: 4 V DC ... 6 V DC
- Switching threshold "0" signal, voltage: ≤ 0.8 V
- Switching threshold "1" signal voltage: ≥ 2.5 V
- Typical input current at UN: 9 mA
- Typical response time: 20 µs (at UN)
- Typical turn-off time: 300 µs (at UN)
- Transmission frequency: 300 Hz
- Power dissipation for nominal condition: 0.05 W
- Output voltage range: 3 V DC ... 33 V DC
- Limiting continuous current: 3 A (see derating curve)
- Maximum inrush current: 15 A (10 ms)
- Voltage drop at max. limiting continuous current: ≤ 150 mV
- Output circuit: 2-wire, floating
- Type of protection: Reverse polarity protection
- Surge protection: Yes
- Test voltage input/output: 2.5 kV (50 Hz, 1 min.)
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Connection in acc. with standard: CUL
- Standards/regulations: IEC 60664, EN 50178
- Insulation: Basic insulation
- Pollution degree: 2
- Overvoltage category: III
- China RoHS: Environmentally Friendly Use Period = 50
