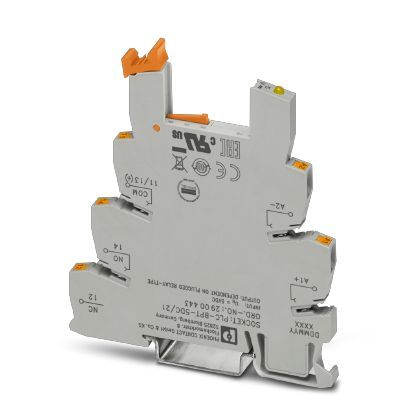

Phoenix Contact PLCBPT5DC21 PLC Relay Base
The Phoenix Contact PLC-BPT- 5DC/21 relay base provides a robust and compact solution for integrating relays into industrial control systems. Designed for mounting on NS 35/7.5 DIN rails, this base offers a push-in connection for easy wiring and accepts a wide range of conductor sizes. With an input voltage of 5V DC and a status LED indicator, it ensures reliable operation and clear indication of relay status. The base is suitable for applications in automation, machine control, and process control, where reliable relay switching is essential. It is also equipped with protective circuits like a damping diode and polarity protection diode for enhanced safety and performance.
Phoenix Contact PLCBPT5DC21 PLC Relay Base Specifications:
- Packing unit: 1 STK
- Minimum order quantity: 10 STK
- GTIN: 4046356507585
- Weight per Piece (excluding packing): 30.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 94 mm
- Nominal input voltage UN: 5 V DC
- Status display: LED
- Protective circuit: Damping diode, polarity protection diode
- Connection name (input side): Input side
- Connection method (input side): Push-in connection
- Stripping length (input side): 8 mm
- Conductor cross section solid (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input side): 26 ... 14
- Connection name (output side): Output side
- Connection method (output side): Push-in connection
- Stripping length (output side): 8 mm
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output side): 26 ... 14
- Note: Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500....
- Color: green
- Operating mode: 100% operating factor
- Connection in acc. with standard: CUL
- Flammability rating according to UL 94: V0
- eCl@ss 5.0: 27371603
- eCl@ss 5.1: 27371603
- eCl@ss 6.0: 27371603
- eCl@ss 7.0: 27371603
- eCl@ss 8.0: 27371603
- eCl@ss 9.0: 27371603
- ETIM 2.0: EC001456
- ETIM 3.0: EC001456
- ETIM 4.0: EC001456
- ETIM 5.0: EC001456
- ETIM 6.0: EC001456
- UNSPSC 6.01: 30211917
- UNSPSC 7.0901: 39121516
- UNSPSC 11: 39121516
- UNSPSC 12.01: 39121516
- UNSPSC 13.2: 39122326
- China RoHS: Environmentally Friendly Use Period = 50
