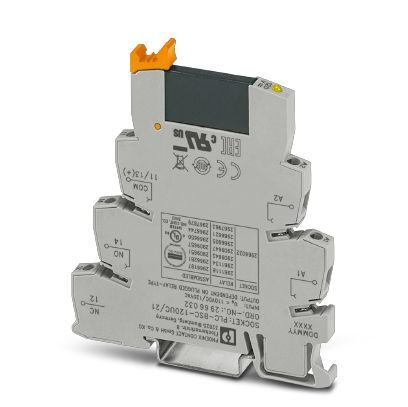

Phoenix Contact PLCOSC120UC24DC2 Solid-State Relay Module
The PHOENIX CONTACT PLC-OSC-120UC/ 24DC/ 2 solid-state relay module is a compact and efficient solution for controlling DC loads in industrial applications. Its slim design allows for space-saving integration on DIN rails, while the efficient connection via a V8 adapter simplifies system cabling. The module incorporates an RT III sealed solid-state relay, ensuring reliable and long-lasting performance. Functional plug-in bridges facilitate easy connection and configuration, and the zero-voltage switching at the AC output minimizes inrush currents and protects connected loads. With an integrated input circuit and high switching power, this module is ideal for a wide range of automation and control tasks.
Phoenix Contact PLCOSC120UC24DC2 Solid-State Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 38.0 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 94 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Nominal input voltage UN: 120 V AC (110 V DC)
- Input voltage range in reference to UN: 0.9 ... 1.1
- Switching threshold "0" signal in reference to UN: ≤ 0.3
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 3.5 mA
- Typical response time: 3.5 ms (at UN)
- Typical turn-off time: 7 ms (at UN)
- Operating voltage display: Yellow LED
- Type of protection (input): Bridge rectifier
- Transmission frequency: 10 Hz
- Output voltage range: 3 V DC ... 33 V DC
- Limiting continuous current: 3 A (see derating curve)
- Maximum inrush current: 15 A (10 ms)
- Voltage drop at max. limiting continuous current: ≤ 200 mV
- Output circuit: 2-wire, floating
- Type of protection (output): Protection against polarity reversal
- Connection name (input): Input side
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Screw thread (input): M3
- Conductor cross section solid (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 26 ... 14
- Connection name (output): Output side
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Screw thread (output): M3
- Conductor cross section solid (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 26 ... 14
- Test voltage input/output: 2.5 kV (50 Hz, 1 min.)
- Mounting position: any
- Operating mode: 100% operating factor
- Flammability rating according to UL 94: V0
- Standards/regulations (IEC): IEC 60664, EN 50178, IEC 62103
- Rated surge voltage/insulation: Basic insulation
- Degree of pollution: 2
- Overvoltage category: III
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371001
- eCl@ss 5.1: 27371001
- eCl@ss 6.0: 27371001
- eCl@ss 7.0: 27371001
- eCl@ss 8.0: 27371604
- ETIM 2.0: EC001504
- ETIM 3.0: EC001504
- ETIM 4.0: EC001504
- ETIM 5.0: EC001504
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121542
- UNSPSC 11: 39121542
- UNSPSC 12.01: 39121542
- UNSPSC 13.2: 39121542
