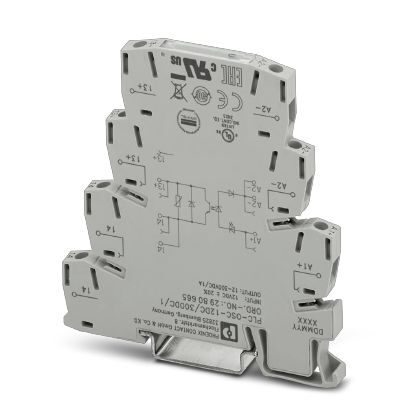

Phoenix Contact PLCOSC12DC300DC1 Solid-State Relay Module
The PHOENIX CONTACT PLC-OSC- 12DC/300DC/ 1 solid-state relay module provides a reliable and efficient solution for switching DC voltages up to 300 V DC/1 A. Its solid-state design ensures wear-free operation and eliminates contact bounce, contributing to increased system reliability. The module is resistant to vibrations and shocks, making it suitable for harsh industrial environments. Integrated protective circuits, including reverse polarity and surge protection, enhance safety and prevent damage. It is designed for mounting on NS 35/7.5 DIN rails and offers the option of bridging adjacent modules for flexible system configuration. This module is ideal for applications in industrial automation, process control, and building management systems where reliable and efficient DC voltage switching is required.
Phoenix Contact PLCOSC12DC300DC1 Solid-State Relay Module Specifications:
- Packing unit: 1 pc
- GTIN: 4046356051408
- Weight per Piece (excluding packing): 36.000 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Nominal input voltage UN: 12 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Input voltage range: 9.6 V DC ... 14.4 V DC
- Switching threshold "0" signal in reference to UN: ≤ 0.4
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 6 mA
- Typical response time: 0.3 ms
- Typical turn-off time: 0.8 ms
- Operating voltage display: Yellow LED
- Type of protection (input): Reverse polarity protection
- Surge protection (input): Yes
- Protective circuit/component (input): Polarity protection diode
- Varistor (input): Yes
- Transmission frequency: 50 Hz
- Power dissipation for nominal condition: 0.07 W
- Output voltage range: 12 V DC ... 300 V DC
- Limiting continuous current: 1 A
- Voltage drop at max. limiting continuous current: < 500 mV
- Type of protection (output): Reverse polarity protection
- Surge protection (output): Yes
- Protective circuit/component (output): Polarity protection diode
- Varistor (output): Yes
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Screw thread (input): M3
- Conductor cross section solid (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 26 ... 14
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Screw thread (output): M3
- Conductor cross section solid (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 26 ... 14
- Rated insulation voltage: 300 V
- Rated surge voltage: 2.5 kV
- Insulation: Basic insulation
- Pollution degree: 2
- Overvoltage category: III
- China RoHS: Environmentally Friendly Use Period = 50
