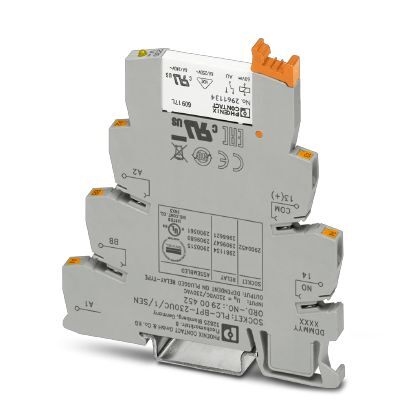

Phoenix Contact PLCRPT230UC1AUSEN 230V AC Relay Module
The Phoenix Contact PLC-RPT-230UC/ 1AU/SEN relay module is designed for input functions, offering a combination of a basic terminal block with push-in connection and a plug-in miniature relay with a multi-layer gold contact. It's ideal for mounting on DIN rail NS 35/7.5 and provides time savings, efficient connection, and space optimization in industrial applications. The module features safe isolation according to DIN EN 50178 and allows for direct sensor connection, contributing to a streamlined and efficient system setup.
Phoenix Contact PLCRPT230UC1AUSEN 230V AC Relay Module Specifications:
- Packing unit: 10 STK
- GTIN: None
- Nominal input voltage UN: 230 V AC / 220 V DC
- Typical input current at UN: 3.2 mA
- Typical response time: 7 ms
- Typical release time: 15 ms
- Protective circuit: Bridge rectifier
- Operating voltage display: Yellow LED
- Power dissipation for nominal condition: 0.74 W
- Contact type: 1 N/O contact
- Contact material: AgSnO, hard gold-plated
- Maximum switching voltage: 30 V AC / 36 V DC
- Minimum switching voltage: 100 mV (at 10 mA)
- Min. switching current: 1 mA (at 24 V)
- Maximum inrush current: 50 mA
- Limiting continuous current: 50 mA
- Interrupting rating (ohmic load) max.: 1 W (at 24 V DC)
- Maximum switching voltage (gold layer destroyed): 250 V AC/DC
- Minimum switching voltage (gold layer destroyed): 5 V (at 100 mA)
- Limiting continuous current (gold layer destroyed): 6 A
- Min. switching current (gold layer destroyed): 10 mA (at 12 V)
- Interrupting rating (ohmic load) max. (gold layer destroyed): 140 W (at 24 V DC) / 20 W (at 48 V DC) / 18 W (at 60 V DC) / 23 W (at 110 V DC) / 40 W (at 220 V DC) / 1500 VA (for 250 V AC)
- Switching capacity in acc. with DIN VDE 0660/IEC 60947: 2 A (at 24 V, DC13) / 0.2 A (at 110 V, DC13) / 0.1 A (at 220 V, DC13) / 3 A (at 24 V, AC15) / 3 A (at 120 V, AC15) / 3 A (at 230 V, AC15)
- Connection name: Coil side
- Connection method: Push-in connection
- Stripping length (input side): 8 mm
- Conductor cross section solid (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input side): 26 ... 14
- Connection name (output side): Contact side
- Connection method (output side): Push-in connection
- Stripping length (output side): 8 mm
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output side): 26 ... 14
- Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Degree of protection: RT III (Relay)
- Mechanical service life: 2 x 10⁷ cycles
- Flammability rating according to UL 94: V0
- Standards/regulations: IEC 60664 / IEC 60664A / DIN VDE 0110 / DIN EN 50178/DIN VDE 0160 / IEC 60255/DIN VDE 0435
- Degree of pollution: 3
- Overvoltage category: III
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Connection in acc. with standard: CUL
Buy the PLC-RPT-230UC/ 1AU/SEN PHOENIX CONTACT 230V AC Relay Module | myMectronic
Purchase the Phoenix Contact PLC-RPT-230UC/ 1AU/SEN relay module securely online for reliable industrial automation.
Buy Now
