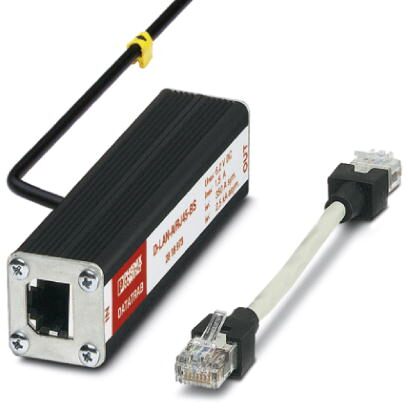

Phoenix Contact DLANARJ45BS LAN Surge Protection Attachment
The PHOENIX CONTACT D-LAN-A/RJ45-BS surge protection device is designed to safeguard LAN interfaces from damaging voltage surges and transients. This attachment connector provides a reliable layer of protection for Ethernet and other network connections, preventing data loss and equipment damage. It is suitable for a wide range of industrial and commercial applications where network reliability is critical. The device adheres to standards like IEC 61643-21 and EN 50173, ensuring compliance and performance. Its compact design allows for easy integration into existing network infrastructure.
Phoenix Contact DLANARJ45BS LAN Surge Protection Attachment Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 151.0 g
- Custom tariff number: 85363010
- Country of origin: Germany
- Ambient temperature (operation): -40 °C ... 80 °C
- Degree of protection: IP20
- Color: black
- Standards for cearances and creepage distances: DIN VDE 0110-1, IEC 60664-1
- Overvoltage category: II
- Degree of pollution: 2
- Type: Attachment plug
- Direction of action: Line-Line & Line-Shield & Shield-Earth Ground
- IEC test classification: C1, C2, C3, B2
- Maximum continuous voltage UC(wire-ground): ± 11 V DC
- Nominal current IN: 1.5 A (25 °C)
- Operating effective current ICat UC: ≤ 1 mA
- Residual current IPE: ≤ 1 µA
- Nominal discharge current In(8/20) µs (Core-Core): 350 A
- Nominal discharge current In(8/20) µs (Core-Earth): 2.5 kA
- Max. discharge current Imax(8/20) µs maximum (Core-Core): 350 A
- Max. discharge current Imax(8/20) µs maximum (Core-Earth): 2.5 kA
- Nominal pulse current Ian (10/700) µs (Core-Core): 160 A
- Nominal pulse current Ian (10/700) µs (Core-Earth): 160 A
- Output voltage limitation at 1 kV/µs (Core-Core) static: ≤ 30 V
- Output voltage limitation at 1 kV/µs (Core-Earth) static: ≤ 500 V
- Output voltage limitation (10/700) µs (core-core): ≤ 12 V
- Output voltage limitation (10/700) µs (Core-Earth): ≤ 200 V
- Residual voltage at In(conductor-conductor): ≤ 37 V
- Residual voltage at In(conductor-ground): ≤ 70 V
- Voltage protection level Up(core-core): ≤ 30 V (C1, 500 V/250 A), ≤ 10 V (B2, 4 kV/100 A)
- Voltage protection level Up(core-ground): ≤ 400 V (C1, 500 V/250 A), ≤ 150 V (B2, 4 kV/100 A)
- Voltage protection level Up(shield-ground): ≤ 600 V (C2 - 4 kV/2 kA)
- Response time tA (Core-Core): ≤ 500 ns
- Response time tA (Core-Earth): ≤ 100 ns
- Input attenuation aE, asym.: 1 dB (up to 100 MHz, 100 Ω system)
- Near-end crosstalk attenuation: 35 dB (pair 3-6 against pair 4-5 in 100 Ω system / 100 MHz)
- Cut-off frequency fg (3 dB), sym. in 100 Ohm system: > 100 MHz
- Cut-off frequency fg (3 dB), sym. in 150 Ohm system: > 100 MHz
- Capacity (Core-Core): 20 pF (1 MHz)
- Capacity (Core-Earth): 1 pF (1 MHz)
- Connection method: Network interfaces (e.g. Ethernet, Token Ring and CDDI/FDDI)
- Connection type IN: RJ45 socket
- Connection type OUT: RJ45 socket
- Standards and Regulations: IEC 61643-21, EN 50173
- eCl@ss 4.0: 27140201
- eCl@ss 4.1: 27130801
- eCl@ss 5.0: 27130801
- eCl@ss 5.1: 27130801
- eCl@ss 6.0: 27130807
- eCl@ss 7.0: 27130807
- eCl@ss 8.0: 27130807
- eCl@ss 9.0: 27130807
- ETIM 2.0: EC000943
- ETIM 3.0: EC000943
- ETIM 4.0: EC000943
- ETIM 5.0: EC000943
- UNSPSC 6.01: 30212010
- UNSPSC 7.0901: 39121610
- UNSPSC 11: 39121610
- UNSPSC 12.01: 39121610
- UNSPSC 13.2: 39121620
